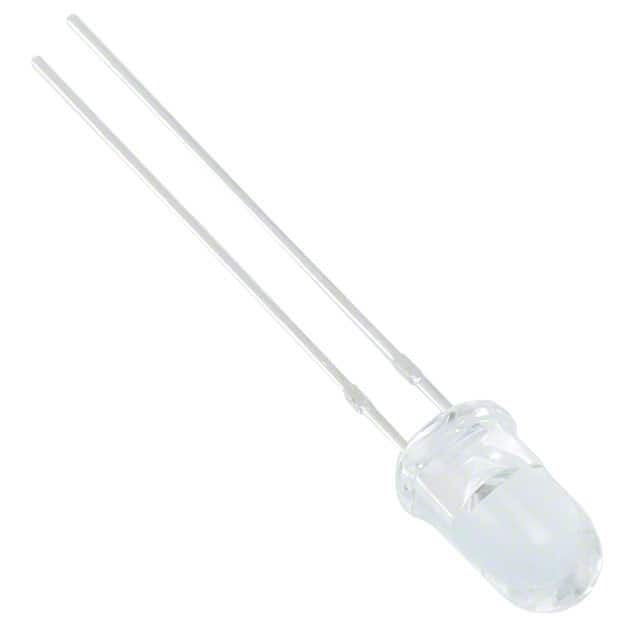

LTE-2871

SKU: 104946

Manufacturer: Lite-On Technology

Infrared Emitter 940nm 12mW/sr Circular Top Mount 2-Pin T-1 3/4

1630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8517.62.00.90
Automotive	No
PPAP	No
Peak Wavelength (nm)	940
LED Body Material	GaAlAs
Lens Dimensions (mm)	5x5x7.6
Intensity	12mW/sr
Viewing Angle (°)	16
Maximum Forward Voltage (V)	1.6
Reverse Voltage (V)	5
Maximum Forward Current (mA)	60
Maximum Reverse Current (uA)	100
Test Current (mA)	20
Maximum Power Dissipation (mW)	90
Operating Temperature-Min	-40
Operating Temperature-Max	85
High Brightness	No
High Power	No
Lens Shape Type	Circular
Mounting Orientation	Top Mount
Original Package	T-1 3/4
Pin Count	2
Standard Package Method	T-1 3/4
Diameter	5.6
Terminal Form	Through Hole
Package Height	8.6
PCB changed	2
