LTA-1000G

SKU: 62427

Manufacturer: Lite-On Technology

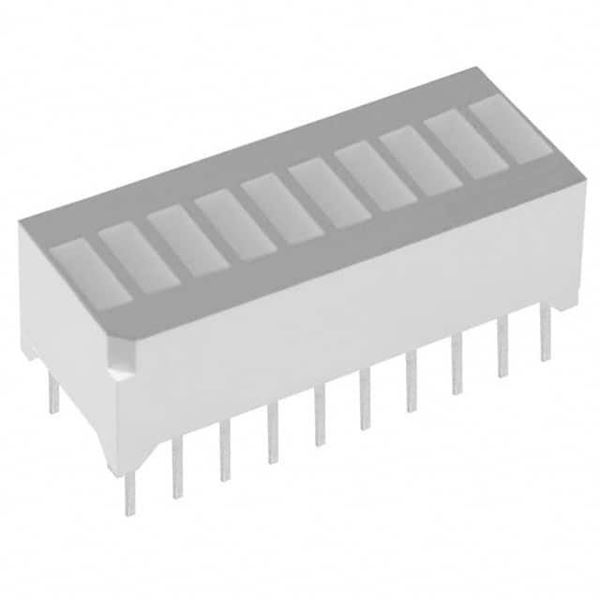

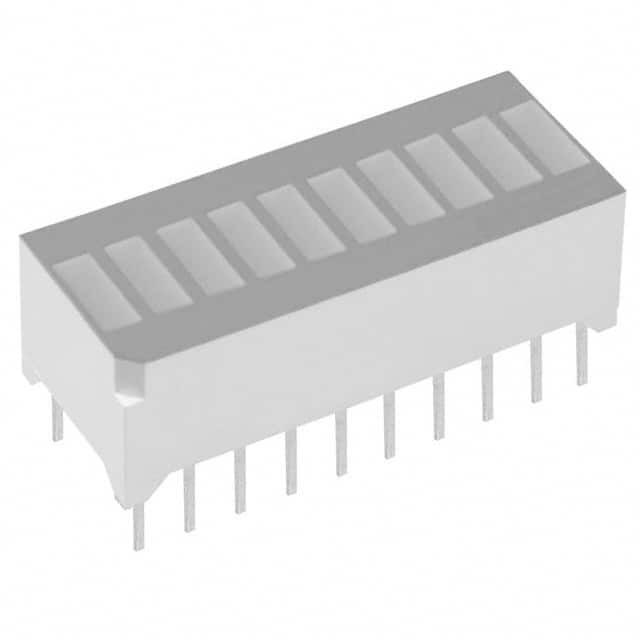

LED Light Bar Uni-Color Green 565nm 20-Pin PDIP

1860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8531.20.00.40
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Standard LED
Color	Green
Number of LEDs	10
LED Body Material	GaP
Lens Shape Type	Rectangular
Lens Dimensions (mm)	5.08x1.78x8
Mounting Orientation	Top Mount
Intensity	2mcd
Dominant Wavelength (nm)	569
Peak Wavelength (nm)	565
Maximum Forward Current (mA)	25
Maximum Reverse Current (uA)	100
Test Current (mA)	20
Maximum Forward Voltage (V)	2.6
Reverse Voltage (V)	5(Max)
Maximum Power Dissipation (mW)	75
Operating Temperature-Min	-35
Operating Temperature-Max	85
Supplier Color	Green
High Brightness	Yes
Original Package	PDIP
Pin Count	20
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	8
Package Length	25.27
Package Width	10.16
PCB changed	20
