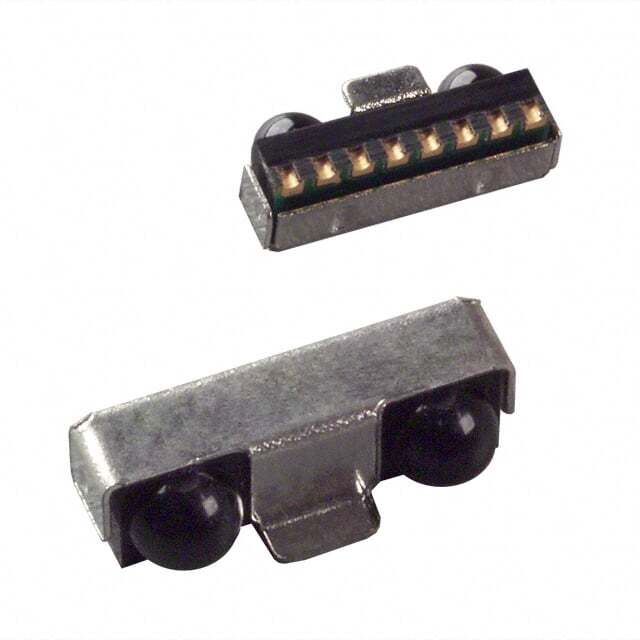

HSDL-3201-008

SKU: 33106

Manufacturer: Lite-On Technology

IRDA TX/RX 0.1152Mbps 3.3V 10-Pin(8+2Tab) SMD T/R

2840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Unknown
PPAP	Unknown
Type	TX/RX
Peak Wavelength (nm)	875/880
Maximum Data Rate (Mbps)	0.1152
Maximum Communication Distance (cm)	30
Radiant Intensity (mW/sr)	9
Half Intensity Angle Degrees (°)	60(Max)/30(Min)
Pulse Width (us)	1.6/2.45
Maximum Rise Time (ns)	600/20
Maximum Fall Time (ns)	600/25
Maximum Forward Current (mA)	32
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
LED Supply Voltage (V)	2.7 to 6
Dimensions (mm)	8x3x2.5
Operating Temperature-Min	-25
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	SMD
Original Package	SMD
Pin Count	10
Terminal Form	Surface Mount
Package Height	2.8
Package Length	7.5
Package Width	2.35
PCB changed	8
Tab	2Tab
