OR3T807BA352-DB

SKU: 16687

Manufacturer: Lattice Semiconductor

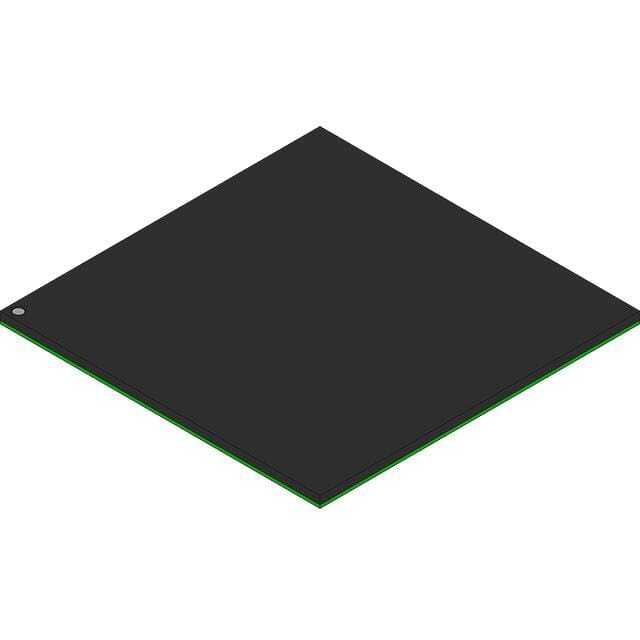

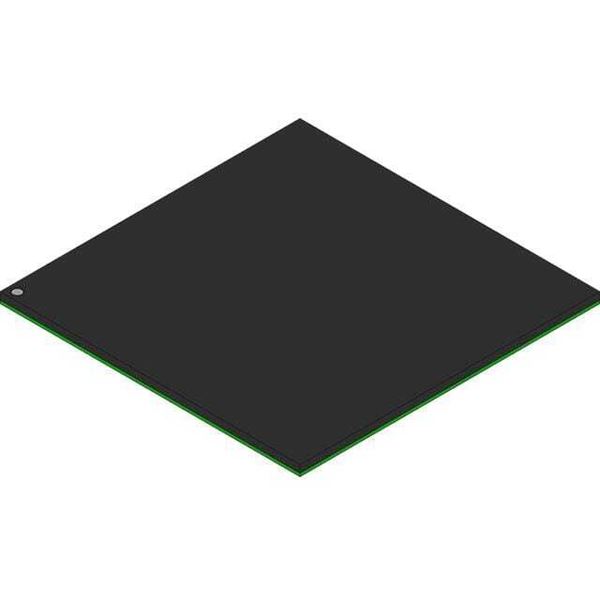

FPGA ORCA Series 3T Family 116K Gates 3872 Cells 0.3um Technology 3.3V 352-Pin BGA Tray

2810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A991.d
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	ORCA Series 3T
Process Technology	0.3um
User I/Os	298
Number of Inter Dielectric Layers	4
Number of Registers	5412
Operating Supply Voltage (V)	3.3
Shift Registers	Utilize LUT
Logic Elements	3872
Device System Gates	116000
Program Memory Type	SRAM
Embedded Memory (Kbit)	62
Device Logic Gates	116000
Device Logic Units	3872
Number of Global Clocks	4
Programmability	No
Reprogrammability Support	No
Copy Protection	No
In-System Programmability	No
Speed Grade	7
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	3.6
Maximum Power Dissipation (mW)	2900
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tray
Tradename	ORCA
Original Package	BGA
Pin Count	352
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.73
Package Length	35
Package Width	35
PCB changed	352
