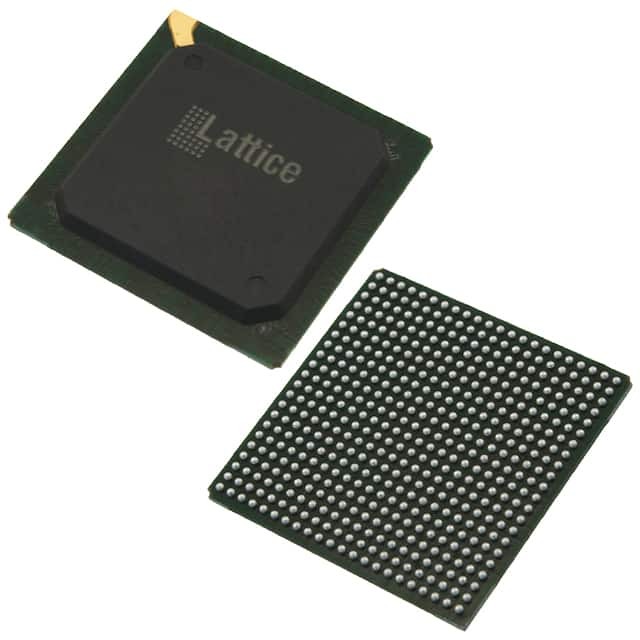

LFXP2-40E-6FN484C

SKU: 72916

Manufacturer: Lattice Semiconductor

FPGA LatticeXP2 Family 40000 Cells 90nm Technology 1.2V 484-Pin FBGA Tray

2910 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.d
Part Status	Active
Automotive	No
PPAP	No
Family Name	LatticeXP2
Process Technology	90nm
User I/Os	363
Number of I/O Banks	8
Operating Supply Voltage (V)	1.2
Shift Registers	Utilize LUT
Logic Elements	40000
Number of Multipliers	32 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	885
Total Number of Block RAM	48
Maximum Distributed RAM Bits	84992
Device Logic Units	40000
Number of Global Clocks	8
Device Number of DLLs/PLLs	4
JTAG Support	Yes
Dedicated DSP	8
Programmability	No
Reprogrammability Support	Yes
Number of Look-up Table Input	4
Copy Protection	No
In-System Programmability	No
Speed Grade	6
GMACs	10.4
Mega Multiply Accumulates per second	10400
Differential I/O Standards	LVCMOS
Maximum Differential I/O Pairs	137
Operating Supply Voltage-Min (V)	1.14
Operating Supply Voltage-Max (V)	1.26
I/O Voltage (V)	1.2
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Packing Method	Tray
Tradename	LatticeXP
Original Package	FBGA
Pin Count	484
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.65
Package Length	23
Package Width	23
PCB changed	484
