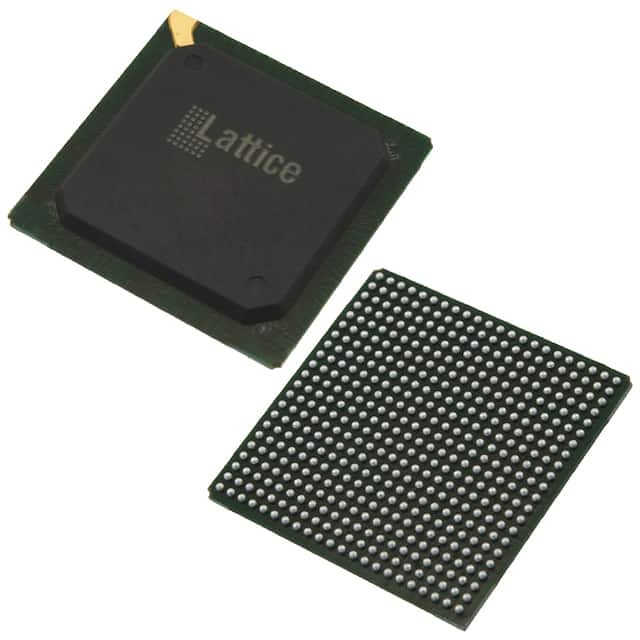

    LFXP15C-3FN484C

    SKU: 72917
    Manufacturer: Lattice Semiconductor
    FPGA LatticeXP Family 15000 Cells 320MHz 130nm Technology 1.8V/2.5V/3.3V 484-Pin FBGA Tray
    2040 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) 3A991d.1.
    Part Status Obsolete
    Automotive No
    PPAP No
    Family Name LatticeXP
    Process Technology 130nm
    User I/Os 300
    Number of I/O Banks 8
    Number of Inter Dielectric Layers 8
    Operating Supply Voltage (V) 2.5
    Logic Elements 15000
    Program Memory Type SRAM
    Embedded Memory (Kbit) 324
    Total Number of Block RAM 36
    Maximum Distributed RAM Bits 62464
    Device Logic Units 15000
    Number of Global Clocks 4
    Device Number of DLLs/PLLs 4
    Programmability Yes
    Reprogrammability Support Yes
    Opr. Frequency (MHz) 320
    In-System Programmability Yes
    Speed Grade 3
    Maximum Differential I/O Pairs 128
    Operating Supply Voltage-Min (V) 1.71
    Operating Supply Voltage-Max (V) 3.465
    I/O Voltage (V) 1.2
    Operating Temperature-Min 0
    Operating Temperature-Max 85
    Supplier Temperature Grade Commercial
    Packing Method Tray
    Tradename LatticeXP
    Original Package FBGA
    Pin Count 484
    Standard Package Method BGA
    Terminal Form Surface Mount
    Package Height 1.65
    Package Length 23
    Package Width 23
    PCB changed 484
