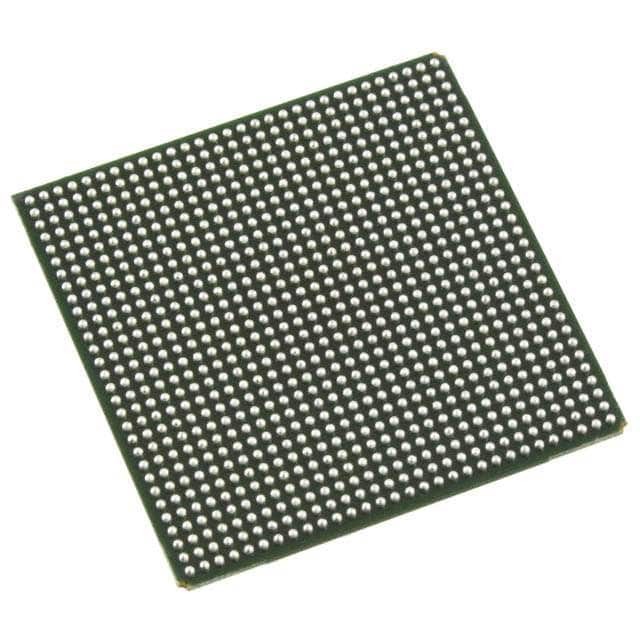

    LFSC3GA15E-5FN900C

    SKU: 150848
    Manufacturer: Lattice Semiconductor
    FPGA LatticeSC Family 15000 Cells 90nm Technology 1.2V 900-Pin FBGA Tray
    1670 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) 3A991.d
    Part Status Obsolete
    Automotive No
    PPAP No
    Family Name LatticeSC
    Process Technology 90nm
    User I/Os 300
    Number of I/O Banks 7
    Operating Supply Voltage (V) 1.2
    Shift Registers Utilize Memory
    Logic Elements 15000
    Program Memory Type SRAM
    Embedded Memory (Kbit) 1008
    Total Number of Block RAM 56
    Maximum Distributed RAM Bits 245760
    SERDES Channels 8
    Device Logic Units 15000
    Number of Global Clocks 8
    Device Number of DLLs/PLLs 12
    Programmability No
    Reprogrammability Support No
    In-System Programmability No
    Speed Grade 5
    Maximum Differential I/O Pairs 141
    Maximum I/O Performance 2Gbps
    Operating Supply Voltage-Min (V) 0.95
    Operating Supply Voltage-Max (V) 1.26
    I/O Voltage (V) 1.2
    Operating Temperature-Min 0
    Operating Temperature-Max 85
    Supplier Temperature Grade Commercial
    Packing Method Tray
    Tradename LatticeSC
    Original Package FBGA
    Pin Count 900
    Standard Package Method BGA
    Terminal Form Surface Mount
    Package Height 1.65
    Package Length 31
    Package Width 31
    PCB changed 900
