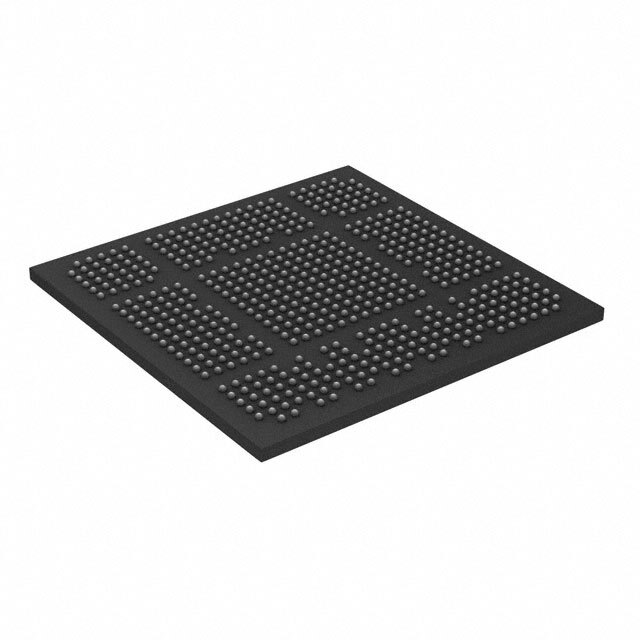

LFE5UM-45F-8BG554I

SKU: 111206

Manufacturer: Lattice Semiconductor

FPGA LatticeECP5 Family 44000 Cells 40nm Technology 1.1V 554-Pin CABGA Tray

1200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.d
Automotive	No
PPAP	No
Family Name	LatticeECP5
Process Technology	40nm
User I/Os	245
Number of I/O Banks	8
Operating Supply Voltage (V)	1.1
Shift Registers	Utilize LUT
Logic Elements	44000
Number of Multipliers	72 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	1944
Total Number of Block RAM	108
Maximum Distributed RAM Bits	359424
SERDES Channels	4
Device Logic Units	44000
Device Number of DLLs/PLLs	4
Programmability	Yes
Reprogrammability Support	Yes
Copy Protection	No
In-System Programmability	Yes
Speed Grade	8
Maximum I/O Performance	3.2Gbps
Operating Supply Voltage-Min (V)	1.045
Operating Supply Voltage-Max (V)	1.155
I/O Voltage (V)	1.2
Operating Temperature-Min	-40
Operating Temperature-Max	100
Supplier Temperature Grade	Industrial
Packing Method	Tray
Tradename	LatticeEC
Original Package	CABGA
Pin Count	554
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.8(Min)
Package Length	23
Package Width	23
PCB changed	554
