EU RoHS
|
Compliant |
ECCN (US)
|
EAR99 |
HTS
|
8542.39.00.01 |
Family Name
|
LatticeECP5 |
Process Technology
|
40nm |
User I/Os
|
197 |
Number of I/O Banks
|
8 |
Operating Supply Voltage (V)
|
1.1 |
Shift Registers
|
Utilize LUT |
Logic Elements
|
24000 |
Number of Multipliers
|
28 (18x18) |
Program Memory Type
|
SRAM |
Embedded Memory (Kbit)
|
1008 |
Total Number of Block RAM
|
56 |
Maximum Distributed RAM Bits
|
198656 |
Device Logic Units
|
24000 |
Device Number of DLLs/PLLs
|
2 |
Programmability
|
Yes |
Reprogrammability Support
|
Yes |
Copy Protection
|
No |
In-System Programmability
|
Yes |
Speed Grade
|
6 |
Maximum I/O Performance
|
3.2Gbps |
Operating Supply Voltage-Min (V)
|
1.045 |
Operating Supply Voltage-Max (V)
|
1.155 |
I/O Voltage (V)
|
1.2 |
Operating Temperature-Min
|
0 |
Operating Temperature-Max
|
85 |
Supplier Temperature Grade
|
Commercial |
Tradename
|
LatticeEC |

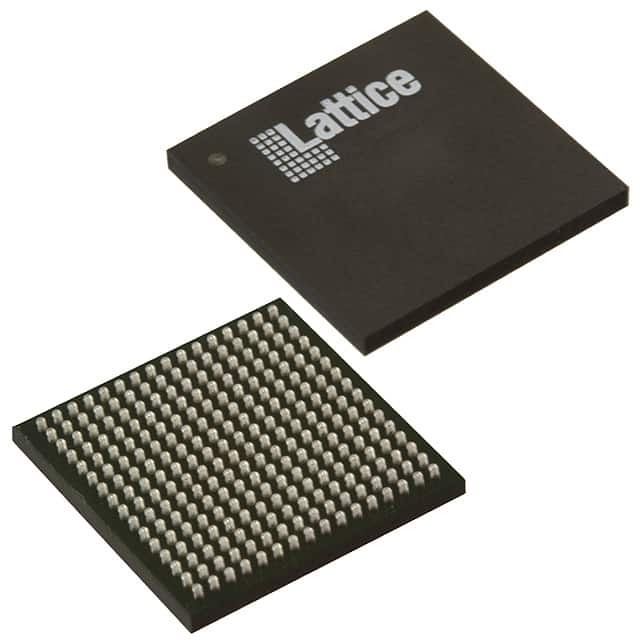

Original Package
|
CABGA |
Pin Count
|
256 |
Standard Package Method
|
BGA |
Terminal Form
|
Surface Mount |
Package Height
|
0.65(Min) |
Package Length
|
14 |
Package Width
|
14 |
PCB changed
|
256 |
