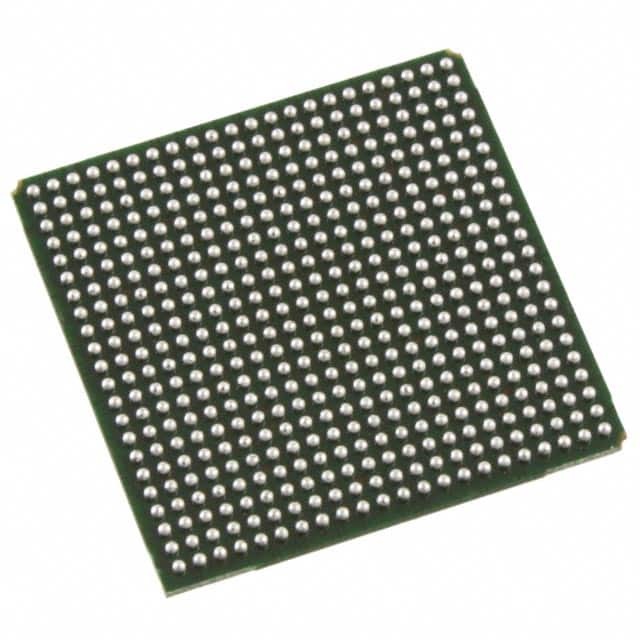

LFE2-20SE-5FN484C

SKU: 12142

Manufacturer: Lattice Semiconductor

FPGA LatticeECP2 Family 21000 Cells 90nm Technology 1.2V 484-Pin FBGA Tray

1200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.d
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	LatticeECP2
Process Technology	90nm
User I/Os	331
Number of I/O Banks	8
Operating Supply Voltage (V)	1.2
Shift Registers	Utilize LUT
Logic Elements	21000
Number of Multipliers	28 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	276
Total Number of Block RAM	15
Maximum Distributed RAM Bits	43008
Device Logic Units	21000
Device Number of DLLs/PLLs	2+0+2
Dedicated DSP	7
Programmability	No
Reprogrammability Support	No
Copy Protection	No
In-System Programmability	Yes
Speed Grade	5
GMACs	9.1
Mega Multiply Accumulates per second	9100
Maximum Differential I/O Pairs	165
Maximum I/O Performance	3.125Gbps
Operating Supply Voltage-Min (V)	1.14
Operating Supply Voltage-Max (V)	1.26
I/O Voltage (V)	1.2
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Packing Method	Tray
Tradename	LatticeEC
Original Package	FBGA
Pin Count	484
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.65
Package Length	23
Package Width	23
PCB changed	484
