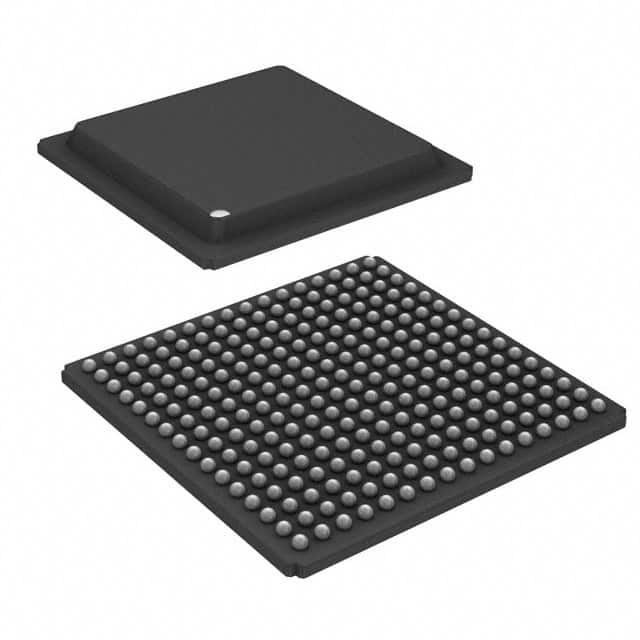

LCMXO2280C-3FT256C

SKU: 30512

Manufacturer: Lattice Semiconductor

CPLD MachXO Family 1140 Macro Cells 1.8V/2.5V/3.3V 256-Pin FTBGA Tray

2440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A991.d
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	MachXO
Logic Elements	2280
Program Memory Type	ROMless
Embedded Memory (Kbit)	27.6
Number of Global Clocks	8
Number of I/O Banks	8
Number of Macro Cells	1140
Data Gate	No
Maximum Number of User I/Os	211
In-System Programmability	Yes
Programmability	Yes
Reprogrammability Support	Yes
Clock Management	Multiply
Maximum Clock to Output Delay (ns)	6.1
Maximum Propagation Delay Time (ns)	5.1
Speed Grade	3
Individual Output Enable Control	No
Operating Supply Voltage-Min (V)	1.71
Operating Supply Voltage-Max (V)	3.465
Typical Operating Supply Voltage (V)	1.8
I/O Voltage (V)	1.2
Maximum Operating Current (mA)	23(Typ)
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Packing Method	Tray
Tradename	MachXO
Original Package	FTBGA
Pin Count	256
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.25(Max)
Package Length	17
Package Width	17
PCB changed	256
