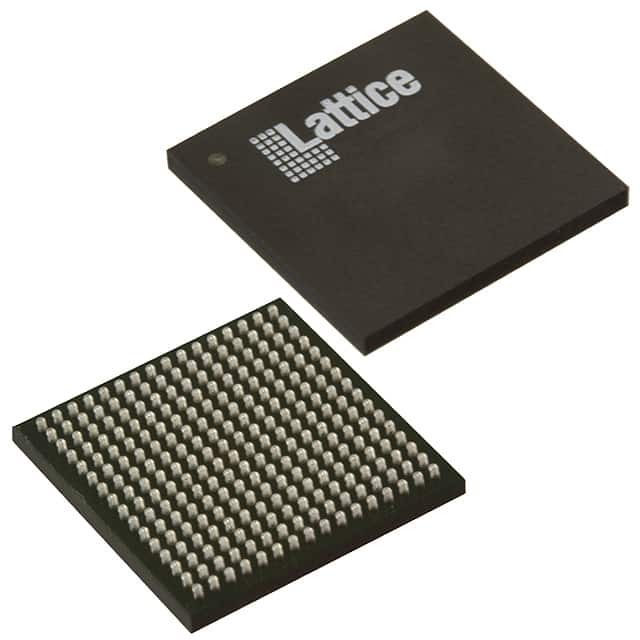

LCMXO2-7000HC-4BG256C

SKU: 101152

Manufacturer: Lattice Semiconductor

CPLD MachXO2 Family 2.5V/3.3V 256-Pin CABGA Tray

2460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991d.
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	MachXO2
Logic Elements	6864
Program Memory Type	FLASH
Embedded Memory (Kbit)	240
Number of Global Clocks	8
Data Gate	No
Maximum Number of User I/Os	207
In-System Programmability	Yes
Programmability	Yes
Reprogrammability Support	Yes
Clock Management	Multiply
Maximum Propagation Delay Time (ns)	8.03
Speed Grade	4
Individual Output Enable Control	No
Operating Supply Voltage-Min (V)	2.375
Operating Supply Voltage-Max (V)	3.465
Typical Operating Supply Voltage (V)	2.5
I/O Voltage (V)	1.2
Maximum Operating Current (mA)	9.7
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Packing Method	Tray
Tradename	MachXO
Original Package	CABGA
Pin Count	256
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.65(Min)
Package Length	14
Package Width	14
PCB changed	256
