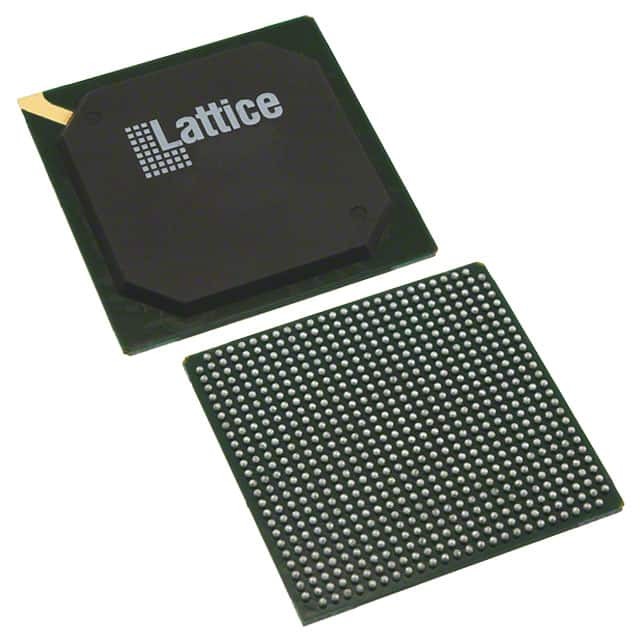

LC51024MC-75F672I

SKU: 12109

Manufacturer: Lattice Semiconductor

CPLD ispXPLD 5000MC Family 300K Gates 1024 Macro Cells 150MHz 1.8V 672-Pin FBGA

2450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

Part Status	Obsolete
Automotive	No
PPAP	No
Family Name	ispXPLD 5000MC
Program Memory Type	EEPROM
Embedded Memory (Kbit)	512
Number of Global Clocks	4
Number of I/O Banks	4
Number of Macro Cells	1024
Product Terms	160
Device System Gates	300000
Data Gate	No
Maximum Number of User I/Os	381
In-System Programmability	Yes
Programmability	Yes
Reprogrammability Support	Yes
Maximum Internal Frequency (MHz)	200
Maximum Clock to Output Delay (ns)	5
Maximum Propagation Delay Time (ns)	7.5
Speed Grade	75
Individual Output Enable Control	No
Operating Supply Voltage-Min (V)	1.65
Operating Supply Voltage-Max (V)	1.95
Typical Operating Supply Voltage (V)	1.8
Tolerant Configuration Interface Voltage (V)	5
Maximum Operating Current (mA)	55(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Industrial
Tradename	ispXPLD
Original Package	FBGA
Pin Count	672
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.65
Package Length	27
Package Width	27
PCB changed	672
