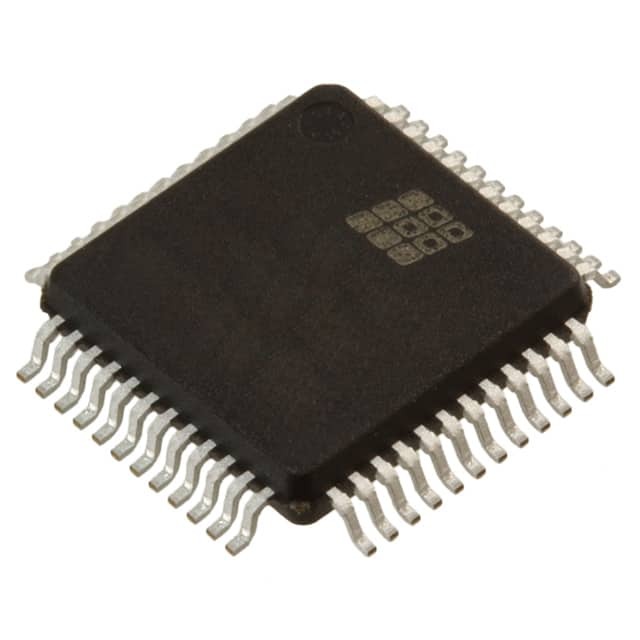

LC4064V-75TN48C

SKU: 111166

Manufacturer: Lattice Semiconductor

CPLD ispMACH® 4000V Family 64 Macro Cells 168MHz 3.3V 48-Pin TQFP Tray

1550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991a.2.
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	ispMACH® 4000V
Program Memory Type	EEPROM
Number of Logic Blocks/Elements	36
Number of Global Clocks	4
Number of I/O Banks	2
Number of Macro Cells	64
Product Terms	80
Data Gate	No
Maximum Number of User I/Os	32
In-System Programmability	Yes
Programmability	Yes
Reprogrammability Support	Yes
Maximum Internal Frequency (MHz)	178.57
Maximum Clock to Output Delay (ns)	4.5
Maximum Propagation Delay Time (ns)	7.5
Speed Grade	75
Individual Output Enable Control	Yes
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	3.6
Typical Operating Supply Voltage (V)	3.3
Tolerant Configuration Interface Voltage (V)	5
Maximum Operating Current (mA)	12(Typ)
Operating Temperature-Min	0
Operating Temperature-Max	90
Supplier Temperature Grade	Commercial
Packing Method	Tray
Tradename	ispMACH
Pin Count	48
Standard Package Method	QFP
Original Package	TQFP
Terminal Form	Surface Mount
Package Height	1
Package Length	7
Package Width	7
PCB changed	48
