LC4032ZE-4TN48C

SKU: 115334

Manufacturer: Lattice Semiconductor

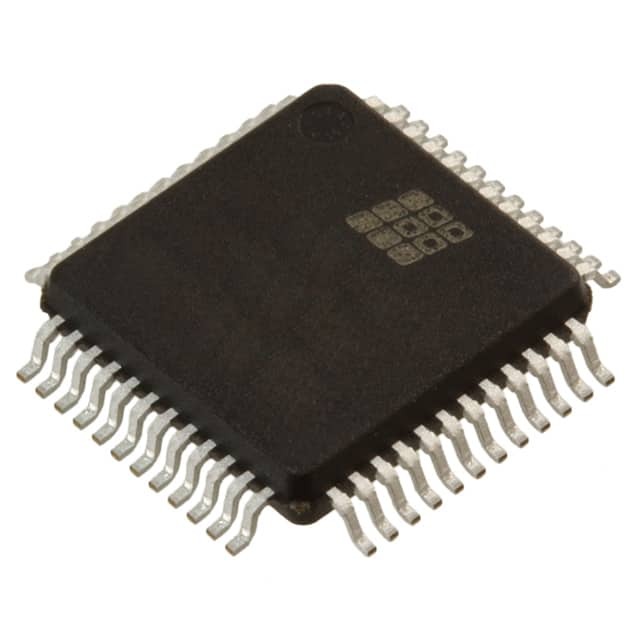

CPLD ispMACH® 4000ZE Family 32 Macro Cells 260MHz 1.8V 48-Pin TQFP Tray

1180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	ispMACH® 4000ZE
Program Memory Type	EEPROM
Number of Logic Blocks/Elements	2
Number of Global Clocks	4
Number of I/O Banks	2
Number of Macro Cells	32
Data Gate	No
Maximum Number of User I/Os	32
In-System Programmability	Yes
Programmability	Yes
Reprogrammability Support	Yes
Programmable Type	In System Programmable
Maximum Internal Frequency (MHz)	500
Maximum Clock to Output Delay (ns)	3
Maximum Propagation Delay Time (ns)	4.4
Speed Grade	4
Individual Output Enable Control	Yes
Operating Supply Voltage-Min (V)	1.7
Operating Supply Voltage-Max (V)	1.9
Typical Operating Supply Voltage (V)	1.8
Tolerant Configuration Interface Voltage (V)	5
Maximum Operating Current (mA)	0.05(Typ)
Operating Temperature-Min	0
Operating Temperature-Max	90
Supplier Temperature Grade	Commercial
Packing Method	Tray
Tradename	ispMACH
Original Package	TQFP
Pin Count	48
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1
Package Length	7
Package Width	7
PCB changed	48
