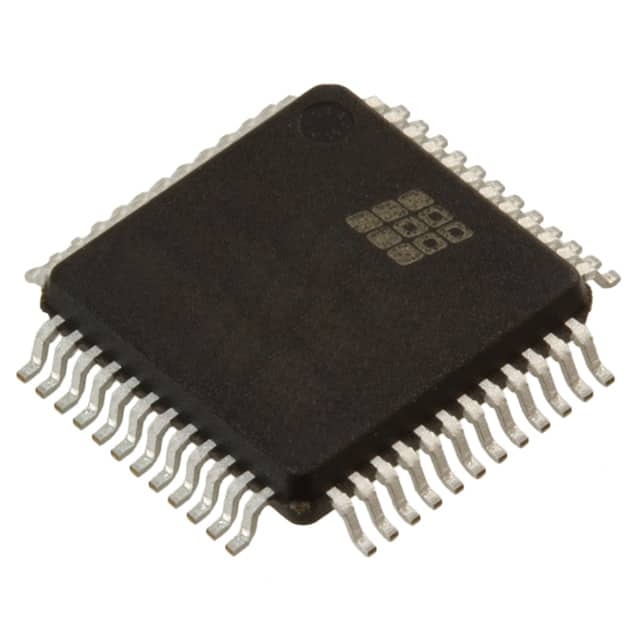

ISPPAC-CLK5312S-01TN48C

SKU: 96885

Manufacturer: Lattice Semiconductor

Zero Delay Buffer 12-Out eHSTL/HSTL/LVCMOS/LVTTL/SSTL Single-Ended 48-Pin TQFP Tray

880 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Type	Clock Generator
Number of Inputs	2
Number of Outputs	12
Number of Banks	12
Programmability	Yes
Minimum Input Frequency (MHz)	8
Maximum Input Frequency (MHz)	267
Minimum Output Frequency (MHz)	2.5
Maximum Output Frequency (MHz)	267
Maximum Output Skew (ps)	100
Maximum Fall Time (ns)	5
Maximum Rise Time (ns)	5
Spread Spectrum	Yes
Maximum Duty Cycle (%)	53
Input Logic Level	HSTL
Output Logic Level	eHSTL
Input Signal Type	Single-Ended
Output Signal Type	Single-Ended
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Maximum Supply Current (mA)	150
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tray
Standard Package Method	QFP
Original Package	TQFP
Pin Count	48
Terminal Form	Surface Mount
Package Height	1.4
Package Length	7
Package Width	7
PCB changed	48
