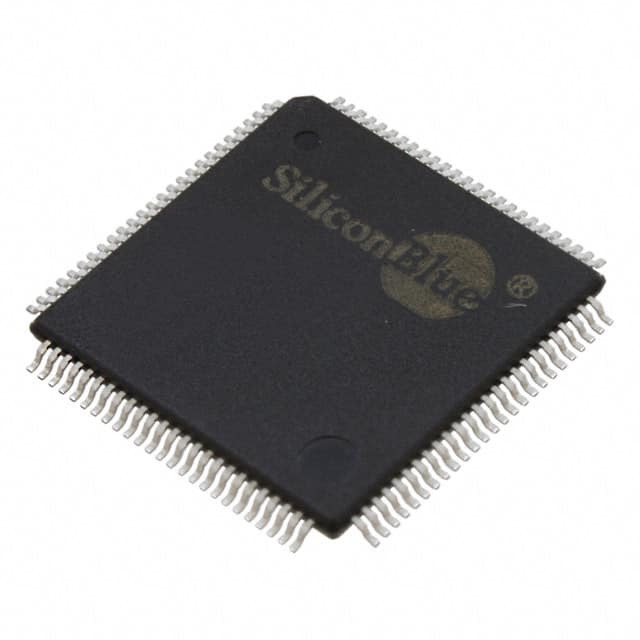

ICE40HX1K-VQ100

SKU: 75555

Manufacturer: Lattice Semiconductor

FPGA iCE40 HX Family 1280 Cells 40nm Technology 1.2V 100-Pin VQFP Tray

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991d.1.
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	iCE40 HX
Process Technology	40nm
User I/Os	72
Number of I/O Banks	4
Operating Supply Voltage (V)	1.2
Logic Elements	1280
Program Memory Type	SRAM
Embedded Memory (Kbit)	64
Total Number of Block RAM	16
Device Logic Units	1280
Number of Global Clocks	8
Device Number of DLLs/PLLs	1
JTAG Support	No
Programmability	Yes
Reprogrammability Support	Yes
Number of Look-up Table Input	4
Copy Protection	No
In-System Programmability	No
Maximum Differential I/O Pairs	11
Operating Supply Voltage-Min (V)	1.14
Operating Supply Voltage-Max (V)	1.26
I/O Voltage (V)	1.2
Operating Temperature-Min	-40
Operating Temperature-Max	100
Packing Method	Tray
Tradename	iCE40
Original Package	VQFP
Pin Count	100
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1
Package Length	14
Package Width	14
PCB changed	100
