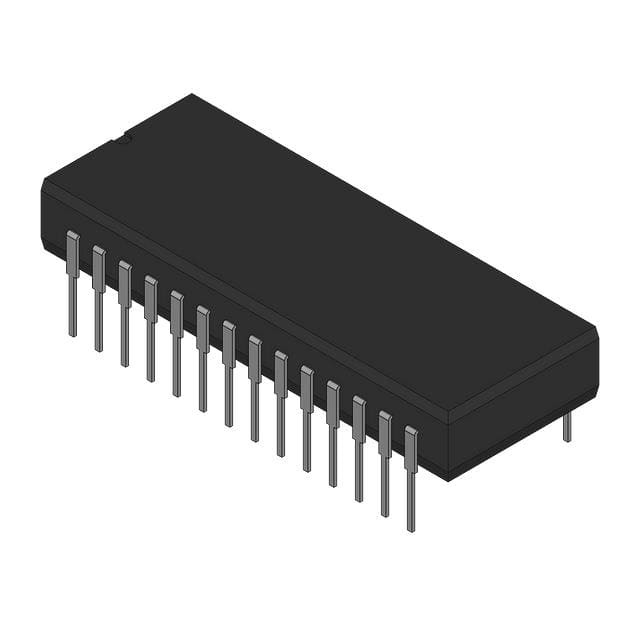

GAL26V12C-20LP

SKU: 61489

Manufacturer: Lattice Semiconductor

SPLD GAL Family 12 Macro Cells 62.5MHz 5V 28-Pin PDIP

2780 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	GAL
Maximum Number of User I/Os	12
Number of Macro Cells	12
Programmability	Yes
Reprogrammability Support	Yes
In-System Programmability	No
Opr. Frequency (MHz)	62.5(Min)
Maximum Propagation Delay Time (ns)	20
Speed Grade	20
Operating Supply Voltage-Min (V)	4.75
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.25
Maximum Operating Current (mA)	105
Operating Temperature-Min	0
Operating Temperature-Max	75
Supplier Temperature Grade	Commercial
Tradename	GAL
Original Package	PDIP
Pin Count	28
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.43
Package Length	34.67
Package Width	7.24
PCB changed	28
