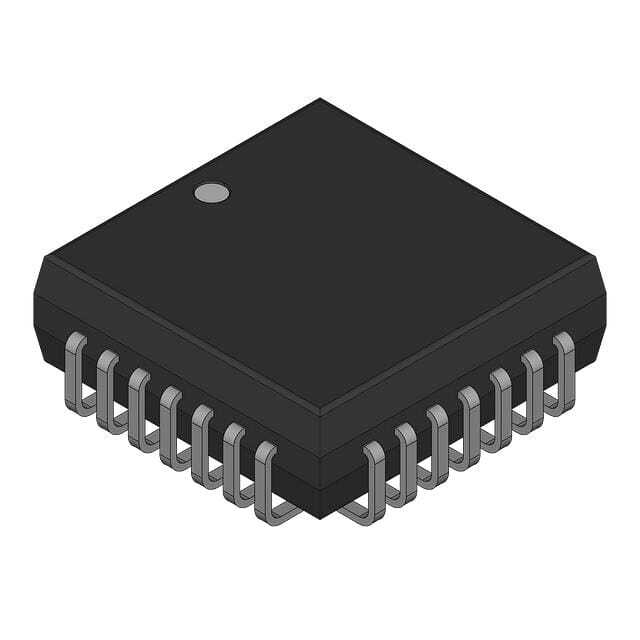

GAL22V10D-4LJN

SKU: 117946

Manufacturer: Lattice Semiconductor

CPLD 10 Macro Cells 250MHz 5V 28-Pin PLCC

3380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Obsolete
Automotive	No
PPAP	No
Program Memory Type	ROMless
Number of Logic Blocks/Elements	10
Number of Macro Cells	10
Product Terms	10
Data Gate	No
Maximum Number of User I/Os	10
In-System Programmability	Yes
Programmability	Yes
Reprogrammability Support	Yes
Programmable Type	EPLD
Maximum Internal Frequency (MHz)	200(Min)
Maximum Clock to Output Delay (ns)	3.5
Maximum Propagation Delay Time (ns)	4
Speed Grade	4
Individual Output Enable Control	Yes
Operating Supply Voltage-Min (V)	4.75
Operating Supply Voltage-Max (V)	5.25
Typical Operating Supply Voltage (V)	5
Maximum Operating Current (mA)	140
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Original Package	PLCC
Pin Count	28
Standard Package Method	LCC
Terminal Form	Surface Mount
Package Height	3.68(Min)
Package Length	11.5
Package Width	11.5
PCB changed	28
