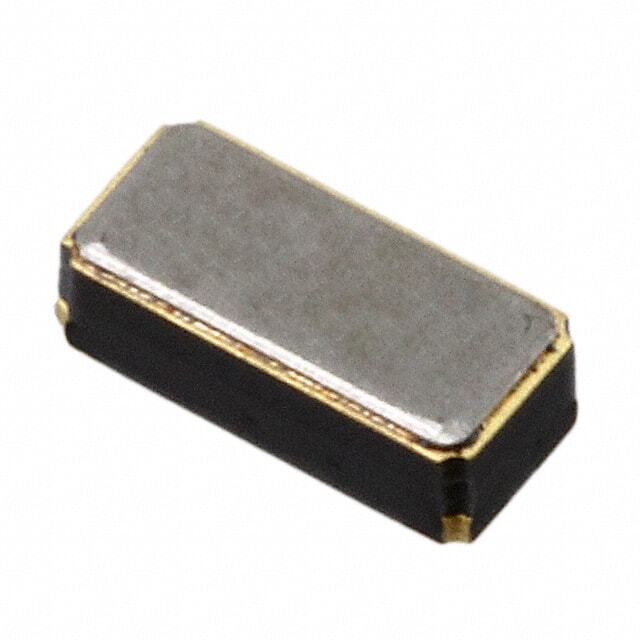

KC3215A32768C33AAE00

SKU: 68751

Manufacturer: Kyocera

Oscillator XO 0.032768MHz -120ppm/10ppm 15pF CMOS 55% 3.3V Automotive 4-Pin SMD T/R

2810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Type	Crystal Oscillator
Standard Frequency (MHz)	0.032768
Frequency Stability (ppm)	-120/10
Frequency Aging (ppm/Year)	±3
Load Capacitance (pF)	15
Maximum Symmetry (%)	55
Output Level	CMOS
Operating Supply Voltage-Min (V)	1.5
Operating Supply Voltage-Max (V)	3.6
Typical Operating Supply Voltage (V)	3.3
Operating Temperature-Min	-20
Operating Temperature-Max	70
Maximum Supply Current (mA)	0.0042
Maximum Low Level Output Voltage (V)	0.4
Packing Method	Tape and Reel
Pin Count	4
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	3.2
Package Width	1.5
PCB changed	4
