TPSR225K006R7000

SKU: 22294

Manufacturer: KYOCERA AVX Components Corporation

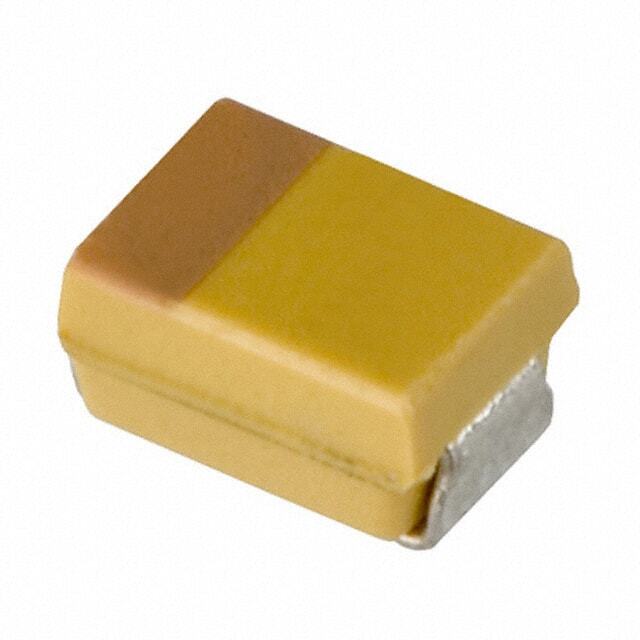

Cap Tant Solid 2.2uF 6.3V R CASE 10% (2.05 X 1.3 X 1.2mm) Inward L SMD 2012-12 7 Ohm 125°C T/R

1640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8532.21.00.50
Automotive	No
PPAP	No
Type	Solid
Capacitance Value	2.2uF
Tolerance	10%
Voltage	6.3VDC
ESR (Ohm)	7
Equivalent Series Resistance Type	Low
IR (mA)	89
IL (uA)	0.5
Polarity	Polar
Dissipation Factor (%)	6
Special Features	Low ESR
Fail Safe with Built-in Fuse	No
High Shock and Vibrating	Yes
Case Code	R
Case Style	Molded
Construction	Flat
Terminal Form	Surface Mount
Terminal Form	Inward L
Number of Terminals	2
Size (mm)	2.05 X 1.3 X 1.2
Case Code - in	2012-12
Temperature Range @ Derated Voltage (°C)	85 to 125
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	2.05
Depth (mm)	1.3
Height (mm)	1.2(Max)
Product Weight (g)	0.01
Length Tolerance (mm)	±0.2
Depth Tolerance (mm)	+0.2
