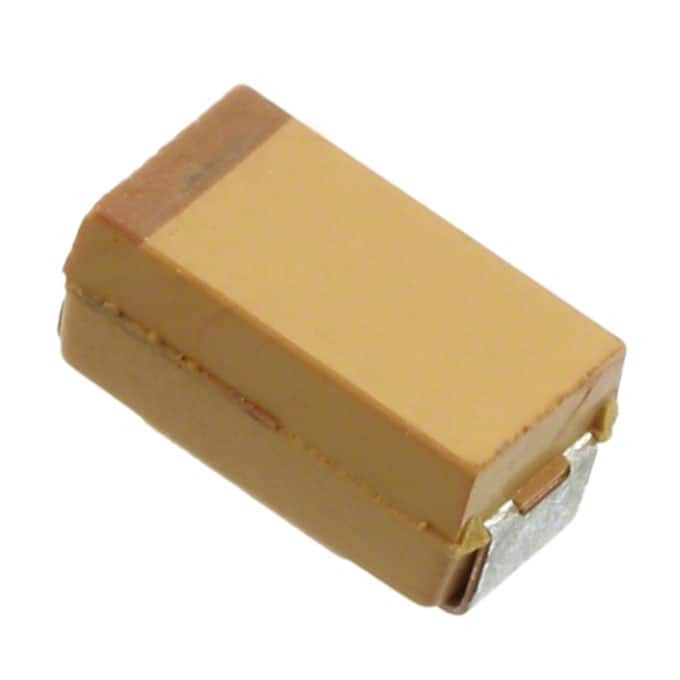

TPSE106K050R0500

SKU: 149753

Manufacturer: KYOCERA AVX Components Corporation

Cap Tant Solid 10uF 50V E CASE 10% (7.3 X 4.3 X 4.1mm) Inward L SMD 7343-43 0.5 Ohm 125°C T/R

1860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8533.29.00.00
Automotive	No
PPAP	No
Type	Solid
Capacitance Value	10uF
Tolerance	10%
Voltage	50VDC
ESR (Ohm)	0.5
Equivalent Series Resistance Type	Low
IR (mA)	574
IL (uA)	5
Polarity	Polar
Dissipation Factor (%)	6
Fail Safe with Built-in Fuse	No
High Shock and Vibrating	Yes
Case Code	E
Case Style	Molded
Construction	Flat
Terminal Form	Surface Mount
Terminal Form	Inward L
Number of Terminals	2
Size (mm)	7.3 X 4.3 X 4.1
Case Code - in	7343-43
Temperature Range @ Derated Voltage (°C)	85 to 125
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	7.3
Depth (mm)	4.3
Height (mm)	4.1
Product Weight (g)	0.512
Length Tolerance (mm)	±0.2
Depth Tolerance (mm)	-0.1
Height Tolerance (mm)	-0.1
