    TCJY107M016R0050E

    SKU: 14979

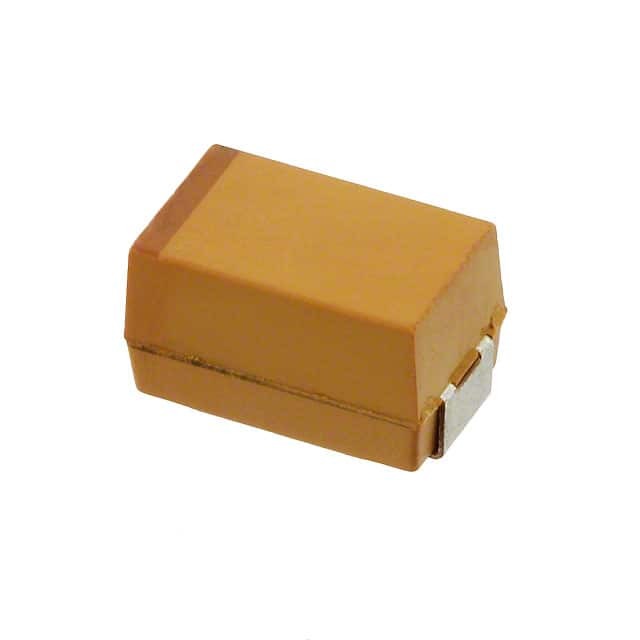

    Cap Tant Polymer 100uF 16VDC Y CASE 20% (7.3 X 4.3 X 2mm) SMD 7343-20 0.05 Ohm 105°C T/R
    3480 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    Automotive No
    PPAP No
    Type Polymer
    Capacitance Value 100uF
    Tolerance 20%
    Voltage 16VDC
    ESR (Ohm) 0.05
    Equivalent Series Resistance Type Low
    IR (mA) 1900
    IL (uA) 160
    Polarity Polar
    Maximum Dissipation Factor (%) 6
    Special Features Low ESR
    Fail Safe with Built-in Fuse No
    High Shock and Vibrating Yes
    Case Code Y
    Case Style Molded
    Construction Flat
    Terminal Form Surface Mount
    Number of Terminals 2
    Maximum Terminal Width (mm) 4.5
    Size (mm) 7.3 X 4.3 X 2
    Case Code - in 7343-20
    Operating Temperature-Min -55
    Operating Temperature-Max 105
    Packing Method Tape and Reel
    Length (mm) 7.3
    Depth (mm) 4.3
    Height (mm) 2(Max)
