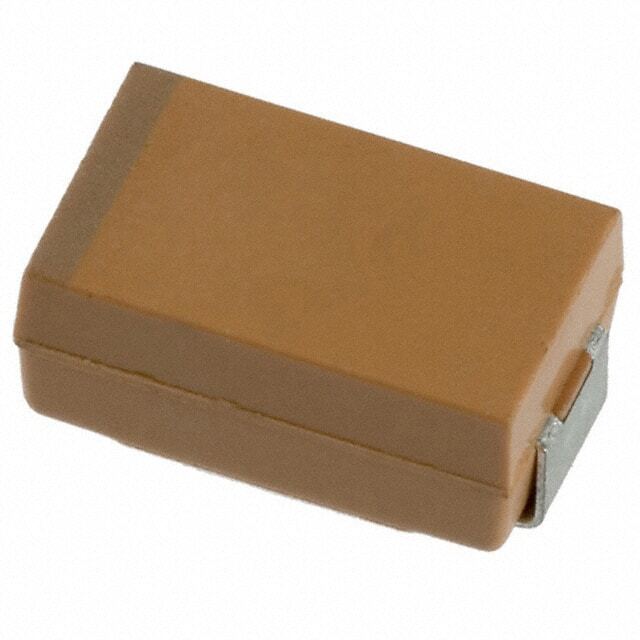

NOSE227M006R0080

SKU: 112719

Manufacturer: KYOCERA AVX Components Corporation

Cap Niobium 220uF 6.3V 20% (7.3 X 4.3 X 4.1mm) SMD 0.08 Ohm 125°C Automotive T/R

3800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8532.29.00.40
Automotive	Yes
PPAP	Unknown
Capacitance Value	220uF
Tolerance	20%
Voltage	6.3VDC
ESR (Ohm)	0.08
Equivalent Series Resistance Type	Low
IR (mA)	1573
IL (uA)	26.4
Polarity	Polar
Dissipation Factor (%)	12
Construction	Flat
Number of Terminals	2
Size (mm)	7.3 X 4.3 X 4.1
Case Code - in	7343-43
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	7.3
Depth (mm)	4.3
Height (mm)	4.1
