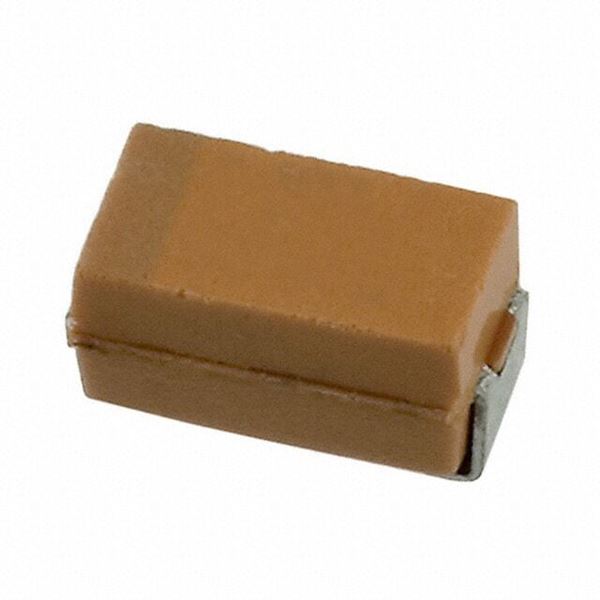

NOSA106M006R0800

SKU: 155331

Manufacturer: KYOCERA AVX Components Corporation

Cap Niobium 10uF 6.3V 20% (3.2 X 1.6 X 1.6mm) SMD 0.8 Ohm 125°C Automotive T/R

4170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8532.29.00.40
Automotive	Yes
PPAP	Unknown
Capacitance Value	10uF
Tolerance	20%
Voltage	6.3VDC
ESR (Ohm)	0.8
Equivalent Series Resistance Type	Low
IR (mA)	335
IL (uA)	1.2
Polarity	Polar
Dissipation Factor (%)	6
Special Features	Low ESR
Construction	Flat
Number of Terminals	2
Size (mm)	3.2 X 1.6 X 1.6
Case Code - in	3216-18
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	3.2
Depth (mm)	1.6
Height (mm)	1.6
Length Tolerance (mm)	±0.2
Depth Tolerance (mm)	+0.2
Height Tolerance (mm)	+0.2
