L06034R7CGSTR

SKU: 72890

Manufacturer: KYOCERA AVX Components Corporation

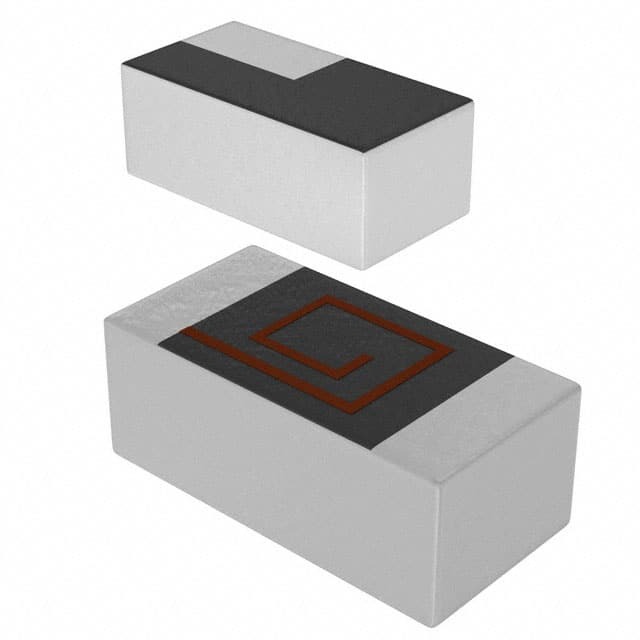

Inductor RF Chip Thin Film Multilayer 0.0047uH 0.2nH 450MHz 23Q-Factor Non Magnetic 0.5A 0.15Ohm DCR 0603 Automotive T/R

1870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Unknown
PPAP	Unknown
Type	RF Chip
Technology	Thin Film Multilayer
Core Body Material	Non Magnetic
Inductance (H)	0.0047u
Tolerance	0.2nH
Inductance Test Frequency (Hz)	450M
Maximum DC Current (A)	0.5
Maximum DC Resistance (Ohm)	0.15
Minimum Quality Factor	23(Typ)
Quality Test Frequency (Hz)	450M
Minimum Self Resonant Frequency (Hz)	5500M
Number of Terminals	2
Case Size	0603
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	1.7
Terminal Form	Surface Mount
Depth (mm)	0.91
