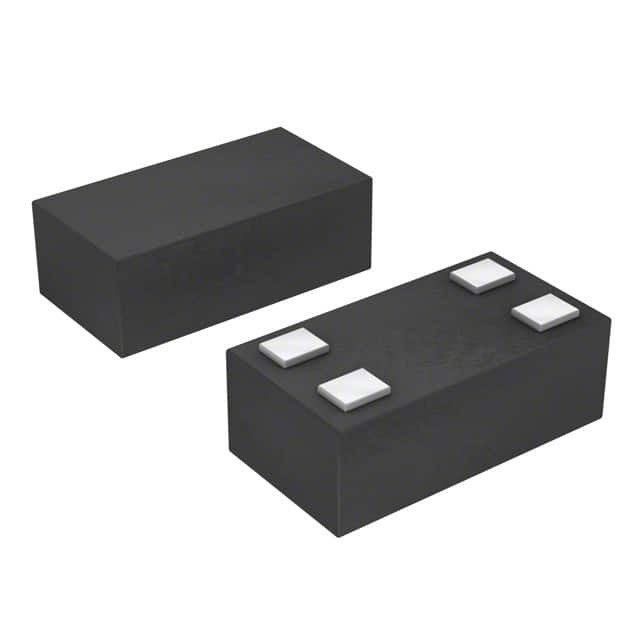

CP0603A0881AWTR

SKU: 30206

Manufacturer: KYOCERA AVX Components Corporation

RF Couplers Uni-directional Coupling 18.5dB 0.869GHz to 0.894GHz Automotive 4-Pin Case 0603(1608Metric) T/R

1710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Type	Directional
Module/IC Classification	IC
Configuration	Uni-directional
Frequency Range (GHz)	0.869 to 0.894
Primary/Secondary Maximum VSWR	1.2
Maximum Insertion Loss (dB)	0.25
Typical Coupling (dB)	18.5
Average Incident Power (W)	3
Impedance (Ohm)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	Flat Chip
Original Package	Case 0603(1608Metric)
Pin Count	4
Terminal Form	Surface Mount
Package Height	0.6
Package Length	1.6
Package Width	0.84
