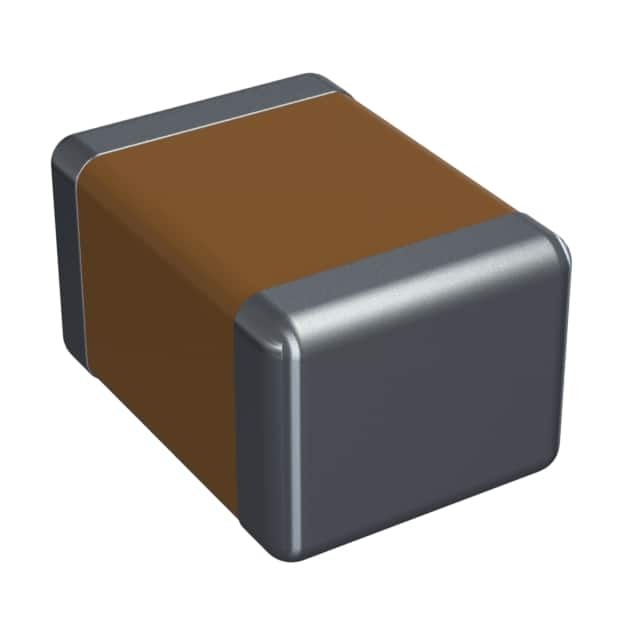

1812GA471JAT1A

SKU: 128766

Manufacturer: KYOCERA AVX Components Corporation

Ceramic Capacitors470pF 2000V C0G 5% Pad SMD 1812 125°C Low ESR T/R

2890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8532.24.00.60
Automotive	No
PPAP	No
Capacitance Value	470pF
Tolerance	5%
Voltage	2000VDC
Equivalent Series Resistance Type	Low
Dielectric	C0G
Technology	Standard
Microwave Application	No
Construction	Flat
Terminal Form	Surface Mount
Terminal Form	Pad
Number of Terminals	2
Case Style	Ceramic Chip
Dissipation Factor (%)	0.1
Size (mm)	4.6 X 3.2 X 2.2098
Case Code - in	1812
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	4.6
Depth (mm)	3.2
Height (mm)	2.2098(Max)
Length Tolerance (mm)	±0.5
