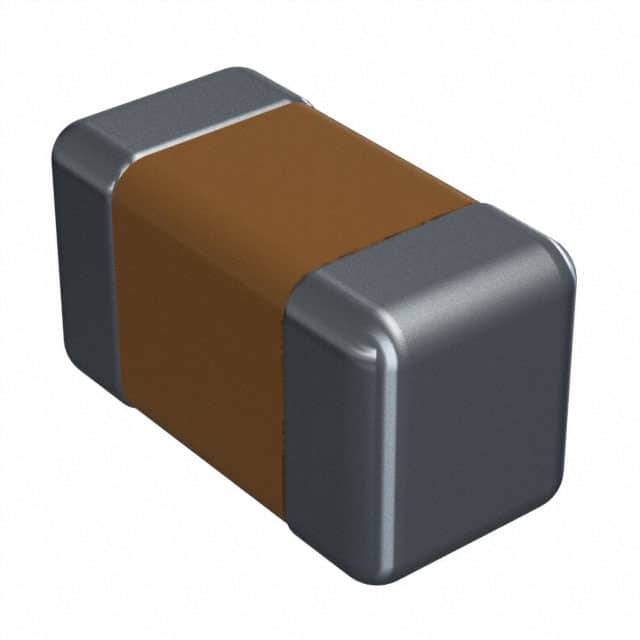

0402ZD105KAT2A

SKU: 9821

Manufacturer: KYOCERA AVX Components Corporation

Ceramic Capacitors1uF 10V X5R 10% Pad SMD 0402 85°C T/R

2570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8532.24.00.20
Automotive	No
PPAP	No
Capacitance Value	1uF
Tolerance	10%
Voltage	10VDC
Dielectric	X5R
Technology	Standard
Microwave Application	No
Special Features	Available in High Capacitance Values (Up to 100uF)
Construction	Flat
Terminal Form	Surface Mount
Terminal Form	Pad
Number of Terminals	2
Case Style	Ceramic Chip
Dissipation Factor (%)	12.5
Size (mm)	1 X 0.5 X 0.56
Case Code - in	0402
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Tape and Reel
Length (mm)	1
Depth (mm)	0.5
Height (mm)	0.56(Max)
Length Tolerance (mm)	±0.2
