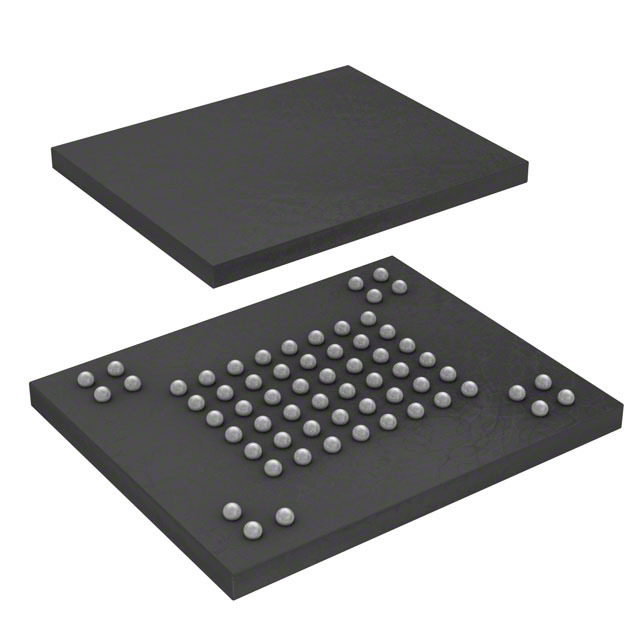

TH58NVG2S3HBAI4

SKU: 85653

Manufacturer: KIOXIA Corporation

NAND Flash Parallel 3.3V 4G-bit 512M x 8 63-Pin BGA

2130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.b.1.a
Part Status	Active
HTS	8542.32.00.71
Automotive	Unknown
PPAP	Unknown
Cell Type	NAND
Chip Density (bit)	4G
Architecture	Sectored
Boot Block	No
Block Organization	Symmetrical
Address Bus Width (bit)	29
Sector Size	128Kbyte x 4096
Page Size	2Kbyte
Number of Bits/Word (bit)	8
Number of Words	512M
Programmability	Yes
Timing Type	Asynchronous
Maximum Erase Time (s)	0.005/Block
Maximum Programming Time (ms)	0.7
Process Technology	24nm, CMOS
Interface Type	Parallel
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Programming Voltage (V)	2.7 to 3.6
Operating Current (mA)	30
Program Current (mA)	30
Operating Temperature-Min	-40
Operating Temperature-Max	85
Command Compatible	No
ECC Support	Yes
Support of Page Mode	Yes
Original Package	BGA
Pin Count	63
Terminal Form	Surface Mount
Package Length	11
Package Width	9
