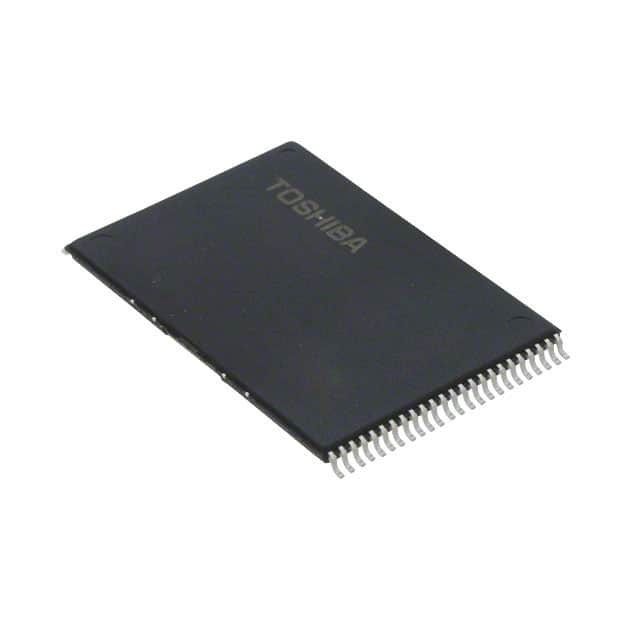

TC58NVG2S0HTA00

SKU: 21969

Manufacturer: KIOXIA Corporation

NAND Flash Parallel 3.3V 4G-bit 512M x 8 48-Pin TSOP-I

180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.b.1.a
Part Status	Active
Automotive	Unknown
PPAP	Unknown
Cell Type	NAND
Chip Density (bit)	4G
Architecture	Sectored
Boot Block	No
Block Organization	Symmetrical
Address Bus Width (bit)	29
Sector Size	256Kbyte x 2048
Page Size	4Kbyte
Number of Bits/Word (bit)	8
Number of Words	512M
Programmability	Yes
Timing Type	Asynchronous
Maximum Erase Time (s)	0.005/Block
Maximum Programming Time (ms)	0.7
Process Technology	CMOS
Interface Type	Parallel
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Programming Voltage (V)	2.7 to 3.6
Operating Current (mA)	30
Program Current (mA)	30
Operating Temperature-Min	0
Operating Temperature-Max	70
Command Compatible	No
ECC Support	Yes
Support of Page Mode	Yes
Original Package	TSOP-I
Pin Count	48
Terminal Form	Surface Mount
Package Height	1
Package Length	12.4(Max)
Package Width	18.4
