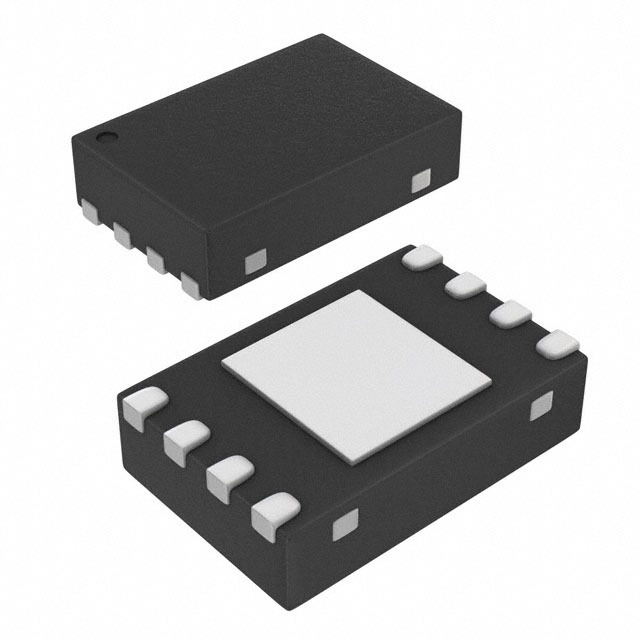

TC58CYG1S3HRAIG

SKU: 123021

Manufacturer: KIOXIA Corporation

NAND Flash Serial-SPI 1.8V 2G-bit 256M x 8 8ns 8-Pin WSON EP

2120 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.b.1.a
Part Status	Obsolete
Automotive	Unknown
PPAP	Unknown
Cell Type	NAND
Chip Density (bit)	2G
Architecture	Sectored
Boot Block	No
Block Organization	Symmetrical
Address Bus Width (bit)	29
Sector Size	128Kbyte x 2048
Page Size	2Kbyte
Number of Bits/Word (bit)	8
Number of Words	256M
Programmability	Yes
Timing Type	Synchronous
Max. Access Time (ns)	8
Maximum Erase Time (s)	0.01/Block
Maximum Programming Time (ms)	0.5
Interface Type	Serial-SPI
Operating Supply Voltage-Min (V)	1.7
Maximum Operating Frequency (MHz)	104
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	1.95
Operating Current (mA)	21
Program Current (mA)	18
Operating Temperature-Min	-40
Operating Temperature-Max	85
Command Compatible	No
ECC Support	Yes
Support of Page Mode	Yes
Original Package	WSON EP
Pin Count	8
Standard Package Method	SON
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	6
Package Width	8
PCB changed	8
