SA39-11SRWA

SKU: 113190

Manufacturer: Kingbright Company, LLC

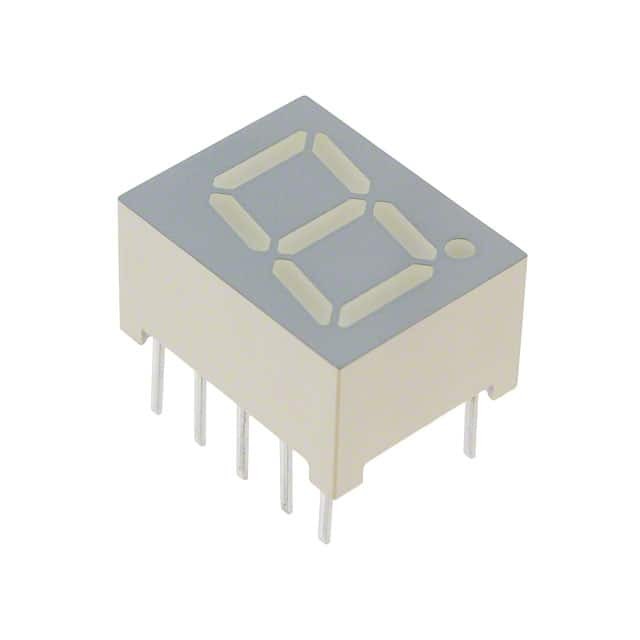

Displays Module 1DIGIT 8LED SB. Red CA 10-Pin DIP Module Tube

1450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8531.20.00.40
Automotive	No
PPAP	No
Type	Module
Number of Digits	1
Color	SB. Red
Number of LEDs	8
Digit Size (in)	0.39
Character Displayed	Numeric
Intensity (ucd)	17000
Dominant Wavelength (nm)	640
Peak Wavelength (nm)	660
Configuration	Common Anode
Maximum Forward Current (mA)	30
Maximum Reverse Current (uA)	10
Test Current (mA)	10
Maximum Reverse Voltage (V)	5
Maximum Forward Voltage (V)	2.5
Maximum Power Dissipation (mW)	75
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Original Package	DIP Module
Pin Count	10
Terminal Form	Through Hole
Package Height	7
Package Length	13
Package Width	10
