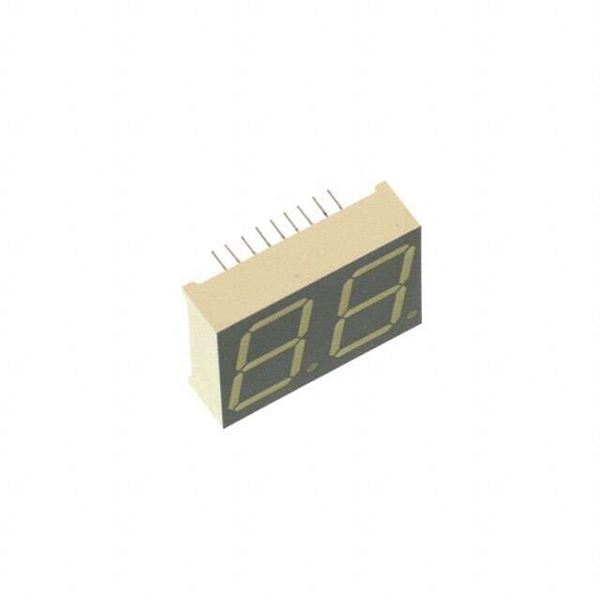

DA08-11SRWA

SKU: 138832

Manufacturer: Kingbright Company, LLC

Displays Panel 2DIGIT 16LED SB. Red CA 18-Pin DIP Module Tube

1310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8531.20.00.40
Automotive	No
PPAP	No
Type	Panel
Number of Digits	2
Color	SB. Red
Number of LEDs	16
Digit Size (in)	0.8
Character Displayed	Numeric
Intensity (ucd)	32000
Dominant Wavelength (nm)	640
Peak Wavelength (nm)	660
Configuration	Common Anode
Maximum Forward Current (mA)	30
Maximum Reverse Current (uA)	10
Test Current (mA)	10
Maximum Reverse Voltage (V)	5
Maximum Forward Voltage (V)	2.5
Maximum Power Dissipation (mW)	75
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Original Package	DIP Module
Pin Count	18
Terminal Form	Through Hole
Package Height	10
Package Length	35.8
Package Width	25.85
