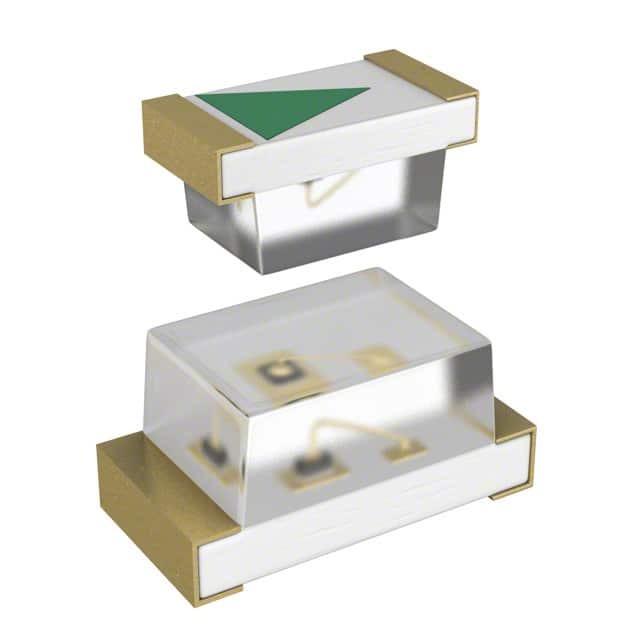

APT1608SF4C-PRV

SKU: 152341

Manufacturer: Kingbright Company, LLC

Infrared Emitter 880nm 1.5mW/sr Rectangular Top Mount 2-Pin Chip LED T/R

2550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Peak Wavelength (nm)	880
LED Body Material	GaAlAs
Lens Dimensions (mm)	1.2x0.8x0.5
Intensity	1.5mW/sr
Viewing Angle (°)	120
Maximum Forward Voltage (V)	1.6
Reverse Voltage (V)	5
Maximum Forward Current (mA)	50
Maximum Reverse Current (uA)	10
Test Current (mA)	120
Maximum Power Dissipation (mW)	80
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
High Brightness	No
High Power	No
Lens Shape Type	Rectangular
Mounting Orientation	Top Mount
Original Package	Chip LED
Pin Count	2
Standard Package Method	Chip LED
Terminal Form	Surface Mount
Package Height	0.75
Package Length	1.6
Package Width	0.8
