APBL3025YSGC-F01

SKU: 67401

Manufacturer: Kingbright Company, LLC

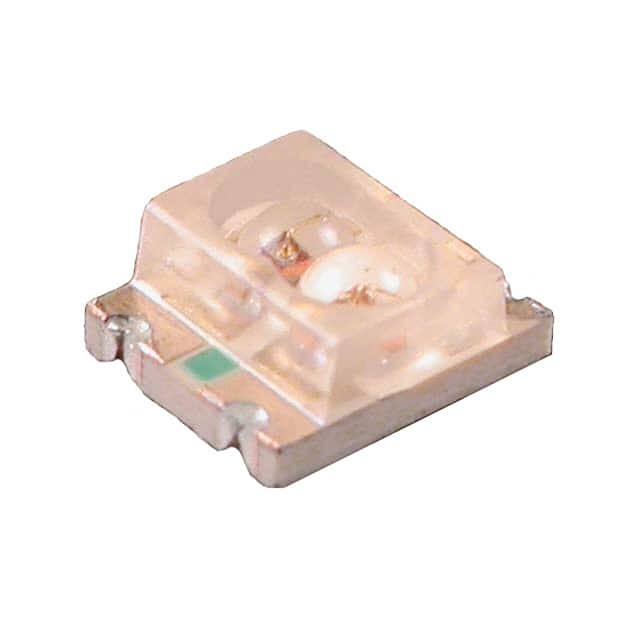

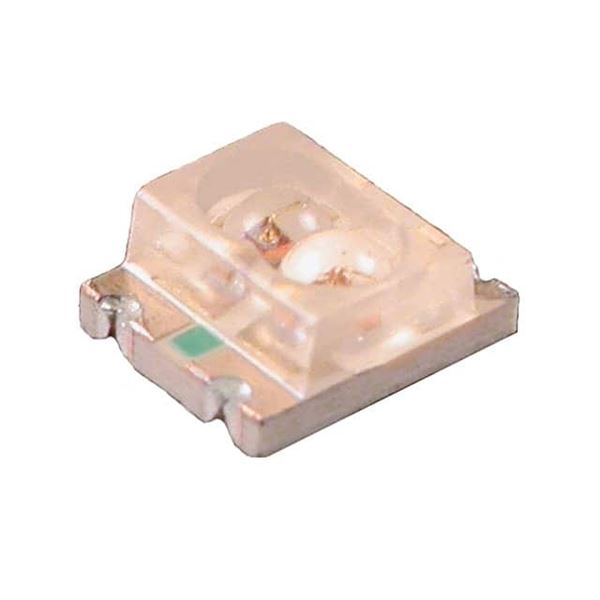

LED Bi-Color Green/Yellow 565nm/590nm 4-Pin SMD T/R

3020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Bi-Color
Product Category	Chip LED
Color	Green/Yellow
Number of LEDs	2
LED Body Material	GaAsP
Lens Shape Type	Circular
Lens Appearance	Colorless Non Diffused
Mounting Orientation	Top Mount
Intensity	20mcd
Dominant Wavelength (nm)	568/588
Peak Wavelength (nm)	565/590
Viewing Angle (°)	70
Maximum Forward Current (mA)	25/30
Test Current (mA)	20
Maximum Forward Voltage (V)	2.5
Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	62.5/75
Operating Temperature-Min	-40
Operating Temperature-Max	85
Lead Standoff	No
Supplier Color	Green/Yellow
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Original Package	SMD
Pin Count	4
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Height	1.4
Package Length	2.5
Package Width	3
