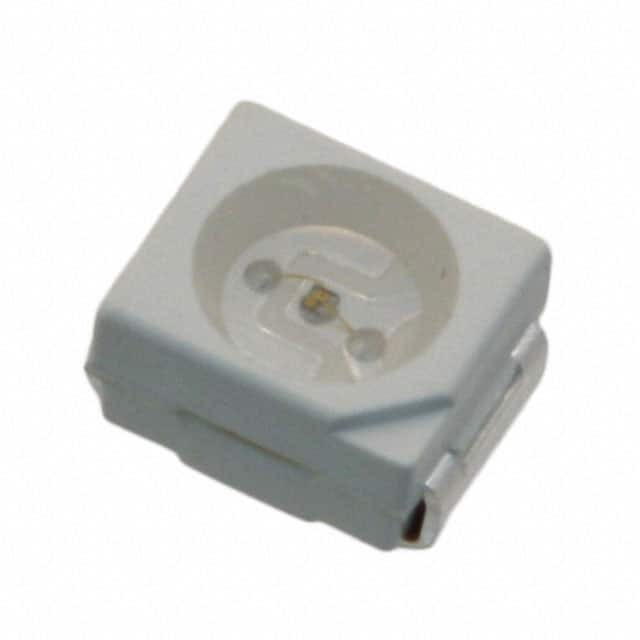

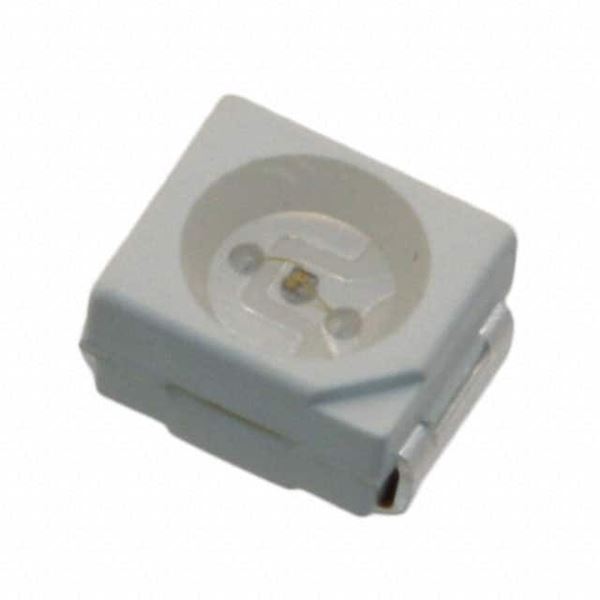

AA3528QBS/D

SKU: 29921

Manufacturer: Kingbright Company, LLC

LED Uni-Color Blue 460nm 2-Pin SMT T/R

2790 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Chip LED
Color
Number of LEDs	1
LED Body Material	InGaN
Lens Shape Type	Circular
Lens Dimensions (mm)	2.4x2.4x0.8
Lens Appearance	Colorless Non Diffused
Mounting Orientation	Top Mount
Intensity	150mcd
Dominant Wavelength (nm)	465
Peak Wavelength (nm)	460
Viewing Angle (°)	120
Maximum Forward Current (mA)	30
Maximum Forward Voltage (V)	4
Reverse Voltage (V)	5
Typical Forward Voltage (V)	3.3
Maximum Junction Temperature (°C)	115
Internal Protection	No
Maximum Power Dissipation (mW)	120
Operating Temperature-Min	-40
Operating Temperature-Max	85
Lead Standoff	No
Supplier Color	Blue
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Original Package	SMT
Pin Count	2
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Height	1.8
Package Length	3.2
Package Width	2.8
