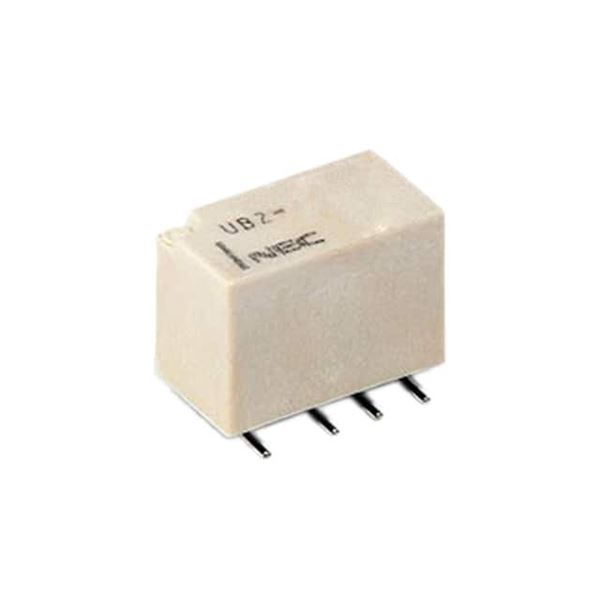

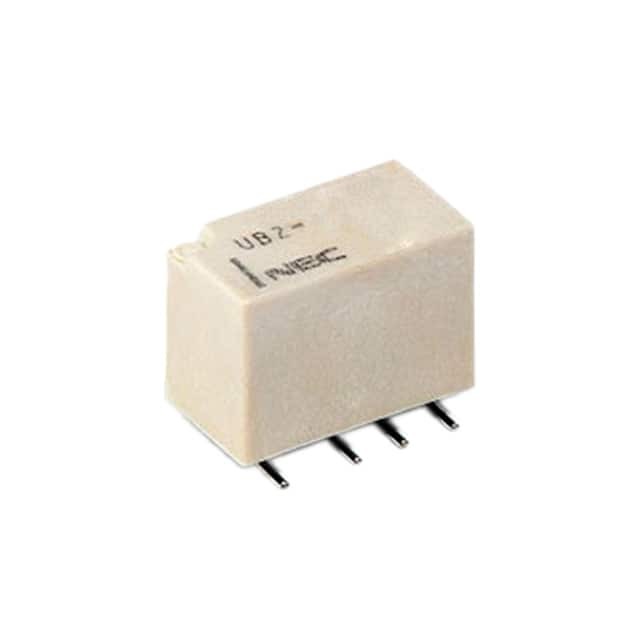

UB2-12NU

SKU: 94780

Manufacturer: KEMET Corporation

Signal Relay 12VDC 1A DPDT(10.6x5.7x8.8)mm SMD

41280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.49.00.50
Automotive	No
PPAP	No
Contact Arrangement	DPDT
Contact Form	2 Form C
DC Coil Voltage (V)	12
Coil Current (mA)	11.67
Coil Resistance (Ohm)	1.028K
Maximum Contact Resistance (mOhm)	100
Insulation Resistance (MOhm)	1000
Maximum Pick-Up Voltage	9VDC
Minimum Dropout Voltage	1.2VDC
Maximum AC Switching Voltage (V)	250
Maximum DC Switching Voltage (V)	220
Maximum Switching Current (A)	1
Operate Time (ms)	2
Release Time (ms)	1
Relay Construction	Non-Latching
Contact Body Material	Silver Alloy/Gold Plated
Maximum Switching Power	30W
Terminal Form	Surface Mount
Terminal Form	Gull Wing
Number of Terminals	8
Operating Temperature-Min	-40
Operating Temperature-Max	85
Product Weight (g)	1
Length (mm)	10.6
Depth (mm)	5.7
