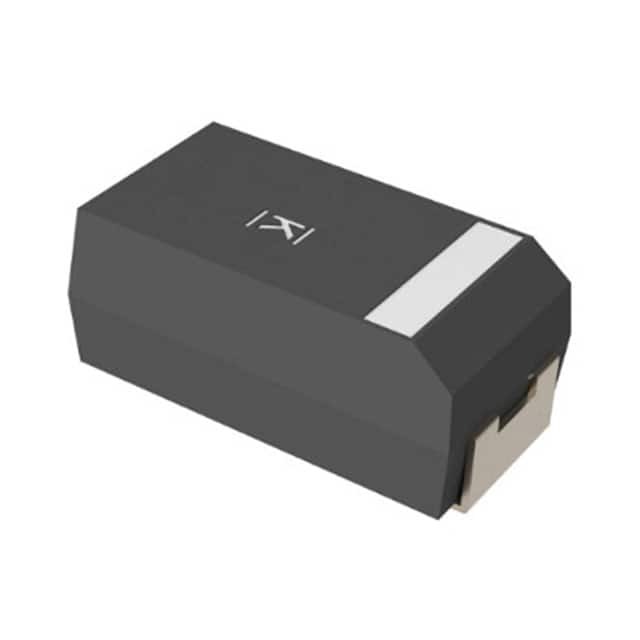

T598D227M006ATE025

SKU: 21907

Manufacturer: KEMET Corporation

Cap Tant Polymer 220uF 6.3VDC D CASE 20% (7.3 X 4.3 X 2.8mm) SMD 7343-31 0.025 Ohm 125°C Automotive T/R

1040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8532.21.00.50
Automotive	Yes
PPAP	Yes
Type	Polymer
Capacitance Value	220uF
Tolerance	20%
Voltage	6.3VDC
ESR (Ohm)	0.025
Equivalent Series Resistance Type	Ultra Low
IR (mA)	3000
IL (uA)	139
Polarity	Polar
Maximum Dissipation Factor (%)	10
Special Features	AEC Q200 Qualified
Fail Safe with Built-in Fuse	No
High Shock and Vibrating	Yes
Case Code	D
Case Style	Molded
Construction	Flat
Terminal Form	Surface Mount
Number of Terminals	2
Size (mm)	7.3 X 4.3 X 2.8
Case Code - in	7343-31
Temperature Range @ Derated Voltage (°C)	105 to 125
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	7.3
Depth (mm)	4.3
Height (mm)	2.8
