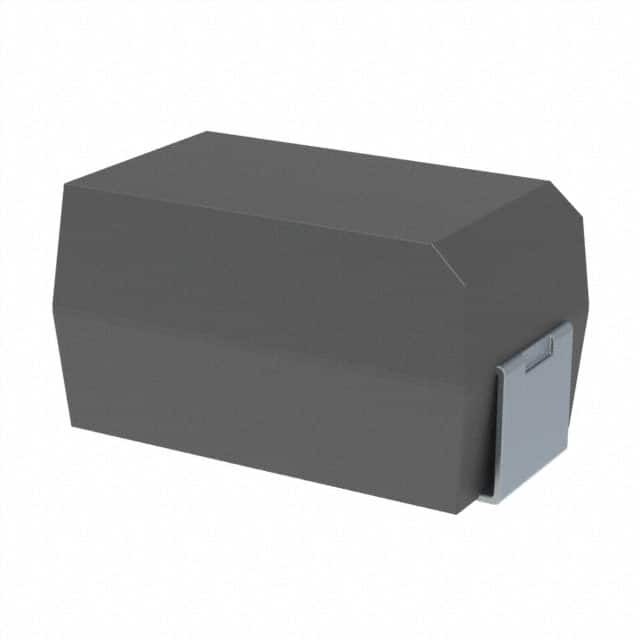

T520X337M010ATE010

SKU: 31079

Manufacturer: KEMET Corporation

Cap Tant Polymer 330uF 10VDC X CASE 20% (7.3 X 4.3 X 4mm) SMD 7343-43 0.01 Ohm 105°C T/R

2420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8532.21.00.50
Automotive	No
PPAP	No
Type	Polymer
Capacitance Value	330uF
Tolerance	20%
Voltage	10VDC
ESR (Ohm)	0.01
Equivalent Series Resistance Type	Low
IR (mA)	5000
IL (uA)	330
Polarity	Polar
Maximum Dissipation Factor (%)	10
Special Features	High Frequency
Fail Safe with Built-in Fuse	No
High Shock and Vibrating	Yes
Case Code	X
Case Style	Molded
Construction	Flat
Terminal Form	Surface Mount
Number of Terminals	2
Maximum Terminal Width (mm)	4.6
Size (mm)	7.3 X 4.3 X 4
Case Code - in	7343-43
Operating Temperature-Min	-55
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	7.3
Depth (mm)	4.3
Height (mm)	4
