T520V107M010ATE025

SKU: 156501

Manufacturer: KEMET Corporation

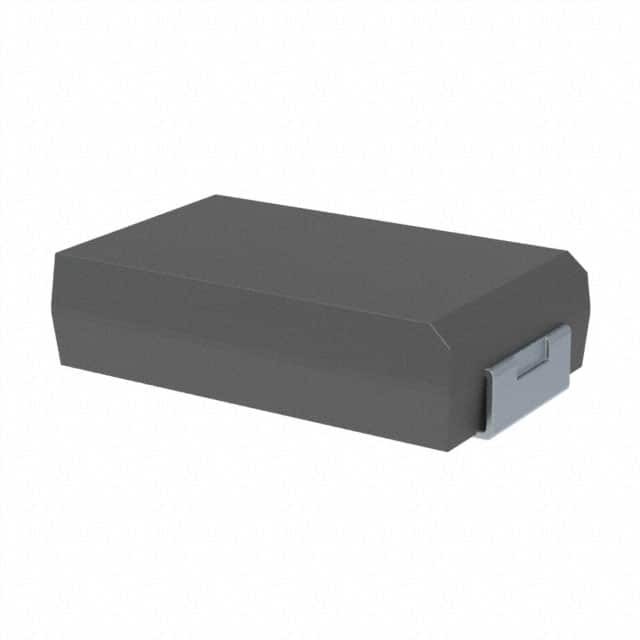

Cap Tant Polymer 100uF 10VDC V CASE 20% (7.3 X 4.3 X 1.8mm) SMD 7343-19 0.025 Ohm 105°C T/R

1430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8532.21.00.50
Automotive	No
PPAP	No
Type	Polymer
Capacitance Value	100uF
Tolerance	20%
Voltage	10VDC
ESR (Ohm)	0.025
Equivalent Series Resistance Type	Low
IR (mA)	2700
IL (uA)	100
Polarity	Polar
Maximum Dissipation Factor (%)	10
Special Features	High Frequency
Fail Safe with Built-in Fuse	No
High Shock and Vibrating	Yes
Case Code	V
Case Style	Molded
Construction	Flat
Terminal Form	Surface Mount
Number of Terminals	2
Maximum Terminal Width (mm)	4.6
Size (mm)	7.3 X 4.3 X 1.8
Case Code - in	7343-19
Operating Temperature-Min	-55
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	7.3
Depth (mm)	4.3
Height (mm)	1.8
