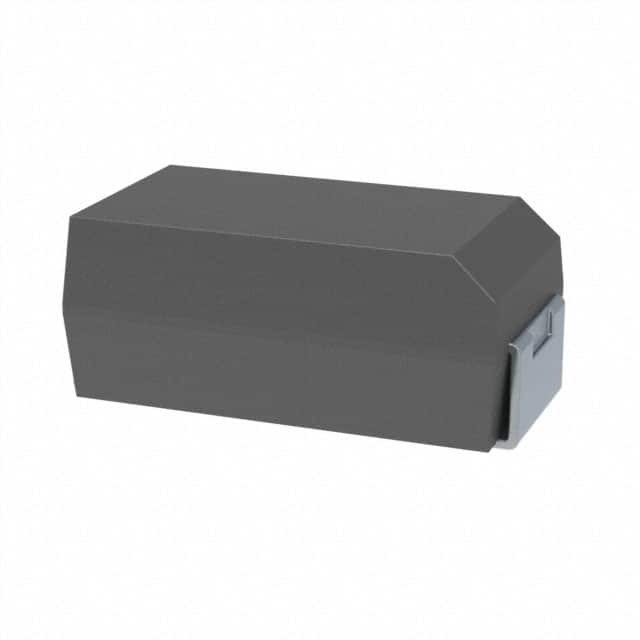

T520C227M004ATE015

SKU: 45313

Manufacturer: KEMET Corporation

Cap Tant Polymer 220uF 4VDC C CASE 20% (6 X 3.2 X 2.5mm) SMD 6032-28 0.015 Ohm 105°C T/R

1920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8532.21.00.50
Automotive	No
PPAP	No
Type	Polymer
Capacitance Value	220uF
Tolerance	20%
Voltage	4VDC
ESR (Ohm)	0.015
Equivalent Series Resistance Type	Low
IR (mA)	3300
IL (uA)	88
Polarity	Polar
Maximum Dissipation Factor (%)	8
Special Features	Low ESR
Fail Safe with Built-in Fuse	No
High Shock and Vibrating	Yes
Case Code	C
Case Style	Molded
Construction	Flat
Terminal Form	Surface Mount
Number of Terminals	2
Maximum Terminal Width (mm)	3.5
Size (mm)	6 X 3.2 X 2.5
Case Code - in	6032-28
Operating Temperature-Min	-55
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	6
Depth (mm)	3.2
Height (mm)	2.5
