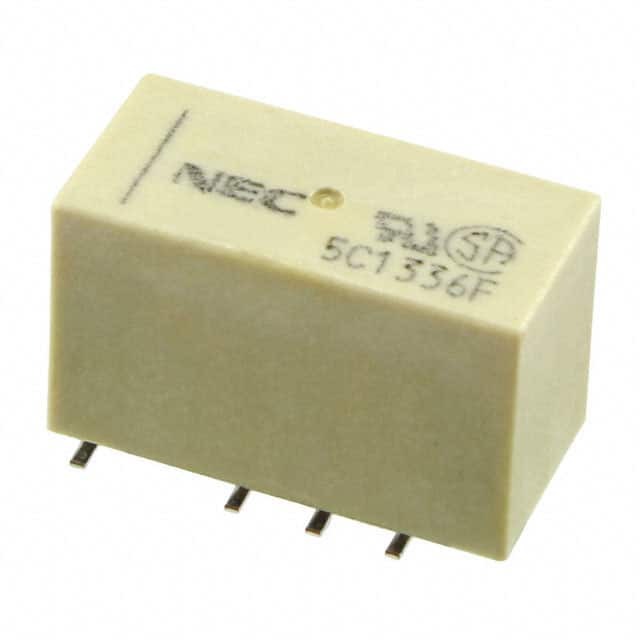

EE2-12SNU

SKU: 93868

Manufacturer: KEMET Corporation

Signal Relay 12VDC 2A DPDT(15x9.5x10)mm SMD

1220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.50
Automotive	No
PPAP	No
Contact Arrangement	DPDT
Contact Form	2 Form C
DC Coil Voltage (V)	12
Coil Current (mA)	8.33
Coil Resistance (Ohm)	1.44K
Maximum Contact Resistance (mOhm)	75
Insulation Resistance (MOhm)	1000
Maximum Pick-Up Voltage	9VDC
Maximum AC Switching Voltage (V)	250
Maximum DC Switching Voltage (V)	220
Maximum Switching Current (A)	2
Operate Time (ms)	2
Release Time (ms)	1
Electrical Life (Operations)	1000000
Mechanical Life (Operations)	10000000
Relay Construction	Latching Single Coil
Contact Body Material	Silver/Gold
Maximum Switching Power	60W
Terminal Form	Surface Mount
Terminal Form	Gull Wing
Number of Terminals	8
Seal	Sealed
Operating Temperature-Min	-40
Operating Temperature-Max	85
Product Weight (g)	1.9
Length (mm)	15
Depth (mm)	9.5
