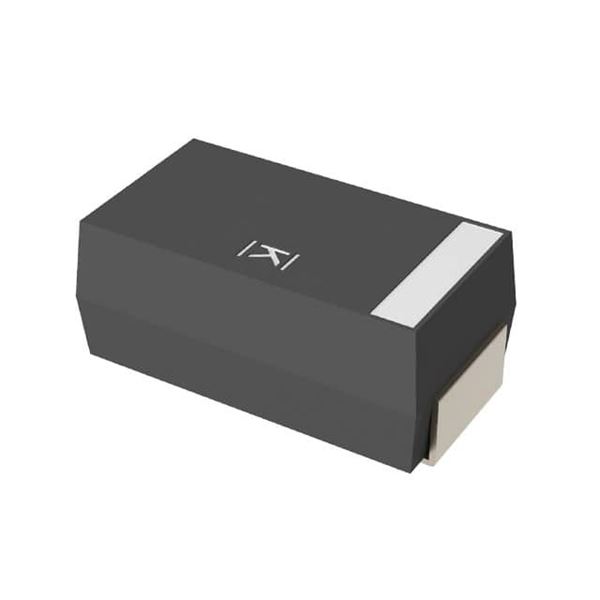

A700X157M010ATE010

SKU: 121880

Manufacturer: KEMET Corporation

Cap Aluminum Organic 150uF 10VDC 20% (7.3 X 4.3 X 4mm) SMD 0.01 Ohm 4700mA 2000h 125°C T/R

900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8532.22.00.40
Automotive	No
PPAP	No
Type	Organic
Capacitance Value	150uF
Tolerance	20%
Voltage	10VDC
ESR (Ohm)	0.01
Equivalent Series Resistance Type	Very Low
IR (mA)	4700
IL (uA)	60@5Min
Lifetime (h)	2000
Polarity	Polar
Construction	Flat
Terminal Form	Surface Mount
Maximum Terminal Width (mm)	4.6
Number of Terminals	2
Size (mm)	7.3 X 4.3 X 4
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Product Weight (g)	0.30503
Length (mm)	7.3
Depth (mm)	4.3
