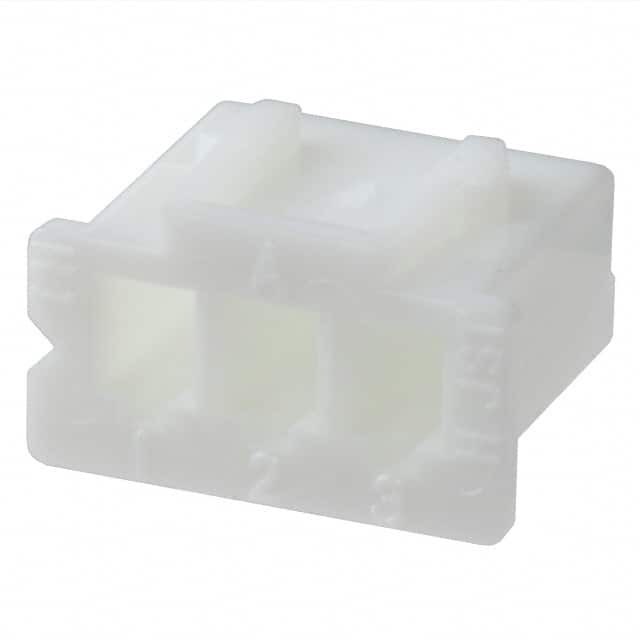

XHP-3 J.S.T.MFG.CO.,LTD

XHP-3

SKU: 114515

Manufacturer: J.S.T.MFG.CO.,LTD

Conn Housing PL 3 POS 2.5mm Crimp ST Cable Mount White Bag

Download sample

Request Free Samples

2833390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Housing
Gender	PL
Number of Contacts	3
Number of Rows	1
Termination Method	Crimp
Terminal Pitch (mm)	2.5
Body Orientation	Straight
Current Rating-Max(A)	3
Voltage Rating-Max	250VDC
Insulation Resistance (MOhm)	1000
Operating Temperature-Min	-25
Operating Temperature-Max	85
Packing Method	Bag
Length (mm)	9.8
Depth (mm)	5.7
Height (mm)	7.75
Keyed	Yes
