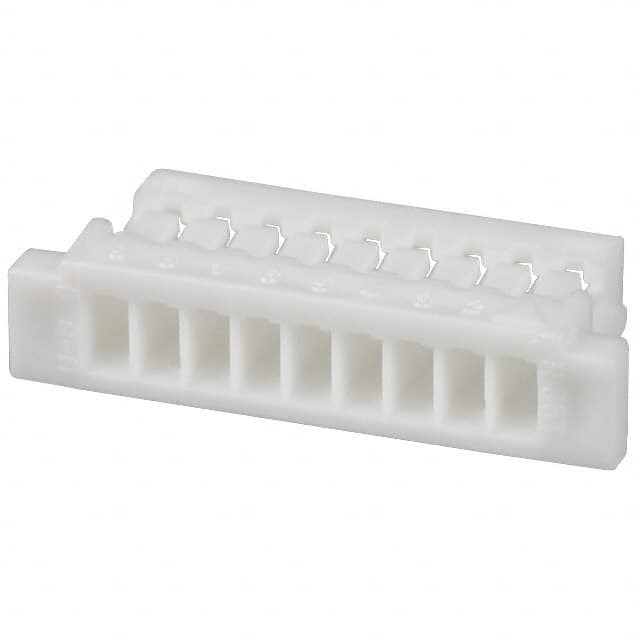

SHR-09V-S-B J.S.T.MFG.CO.,LTD

SHR-09V-S-B

SKU: 141711

Manufacturer: J.S.T.MFG.CO.,LTD

Conn Housing RCP 9 POS 1mm Crimp ST Cable Mount Box

Download sample

Request Free Samples

820 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.51
Automotive	No
PPAP	No
Type	Housing
Gender	RCP
Number of Contacts	9
Number of Rows	1
Termination Method	Crimp
Terminal Pitch (mm)	1
Body Orientation	Straight
Current Rating-Max(A)	1
Voltage Rating-Max	50VAC
Insulation Resistance (MOhm)	100
Operating Temperature-Min	-25
Operating Temperature-Max	85
Packing Method	Box
Length (mm)	12
Depth (mm)	2.8
Height (mm)	5
