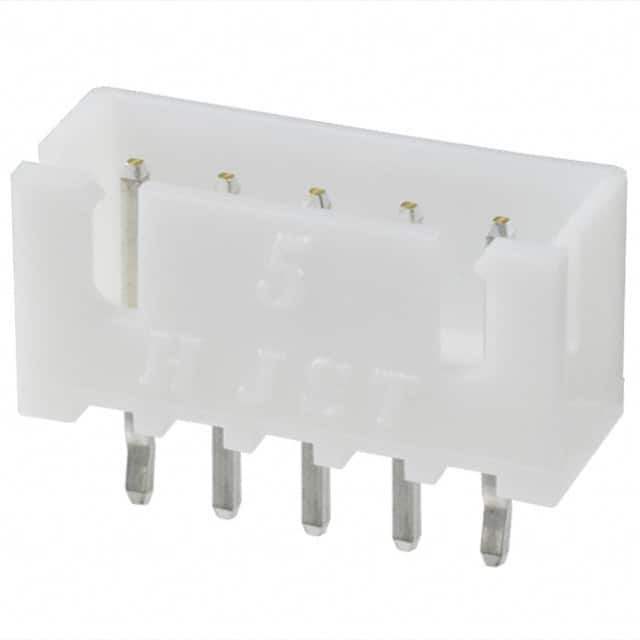

B5B-XH-ALFSN

SKU: 131279

Manufacturer: J.S.T.MFG.CO.,LTD

Conn Shrouded Header (4 Sides) HDR 5 POS 2.5mm Solder ST Top Entry Thru-Hole Box

3900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Shrouded Header (4 Sides)
Gender	HDR
Number of Contacts	5
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	2.5
Body Orientation	Straight
Polarization Type	Dual Slot
Current Rating-Max(A)	3
Voltage Rating-Max	250VDC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-25
Operating Temperature-Max	85
Packing Method	Box
Length (mm)	14.9
Depth (mm)	5.75
Height (mm)	7
Tail Length (mm)	3.4
