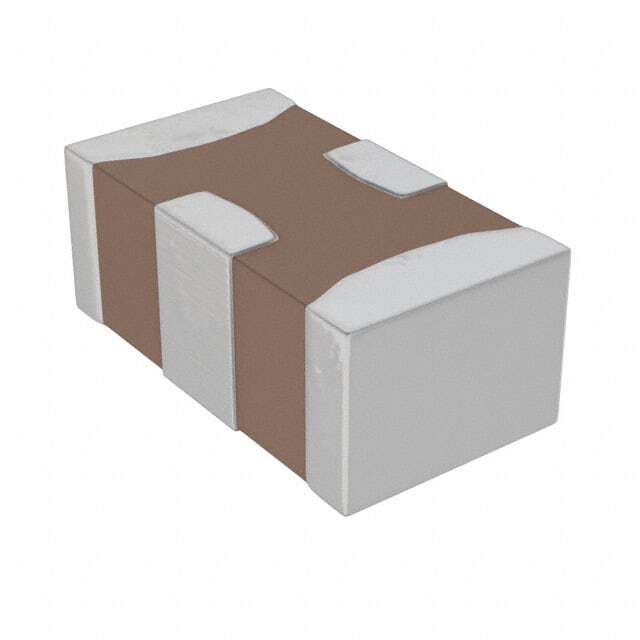

500X14W102MV4T

SKU: 102062

Manufacturer: Johanson Dielectrics

Cap Feed Through 0.001uF 50VDC X7R 20% Flat 0603 125°C

1660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8532.24.00.60
Automotive	No
PPAP	No
Capacitance Value	0.001uF
Tolerance	20%
Voltage	50VDC
Minimum Insulation Resistance (Ohm)	10G
Dielectric	X7R
Microwave Application	No
Special Features	Low Inductance
Construction	Flat
Terminal Form	Surface Mount
Maximum Terminal Width (mm)	1.02
Case Code - in	0603
Operating Temperature-Min	-55
Operating Temperature-Max	125
Length (mm)	1.626
Depth (mm)	0.889
Height (mm)	0.66(Max)
Length Tolerance (mm)	±0.13
