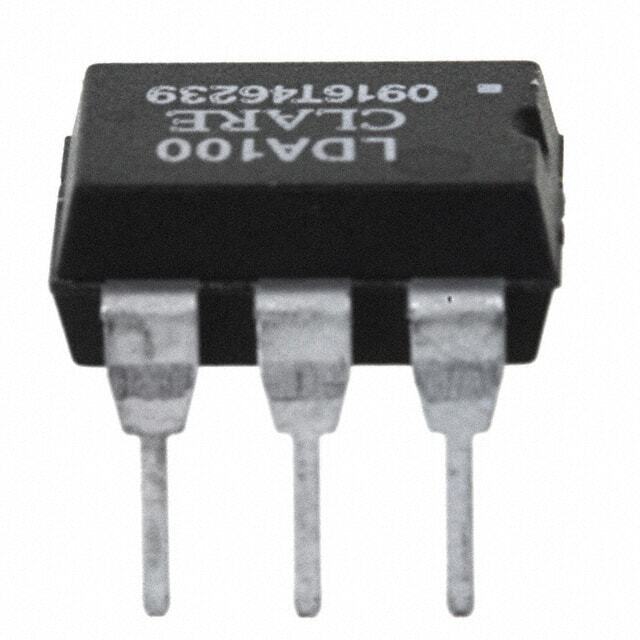

LDA100

SKU: 139624

Manufacturer: IXYS

Optocoupler AC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP Tube

2110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Output Type	DC
Input Type	AC
Output Device	Transistor With Base
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	3750
Operating Temperature-Min	-40
Operating Temperature-Max	85
Maximum Forward Voltage (V)	1.4
Collector-Emitter Voltage-Max (V)	30
Maximum Current Transfer Ratio (%)	300(Typ)
Standard	CSA
Maximum Collector-Emitter Saturation Voltage (mV)	500
Maximum Power Dissipation (mW)	150
Minimum Forward Voltage (V)	0.9
Typical Forward Voltage (V)	1.2
Maximum Forward Current (mA)	50
Packing Method	Tube
Minimum Current Transfer Ratio (%)	33
Current Transfer Ratio Test Current (mA)	1
Standard Package Method	DIP
Pin Count	6
Original Package	PDIP
Terminal Form	Through Hole
Package Height	3.3
Package Length	8.38
Package Width	6.35
PCB changed	6
