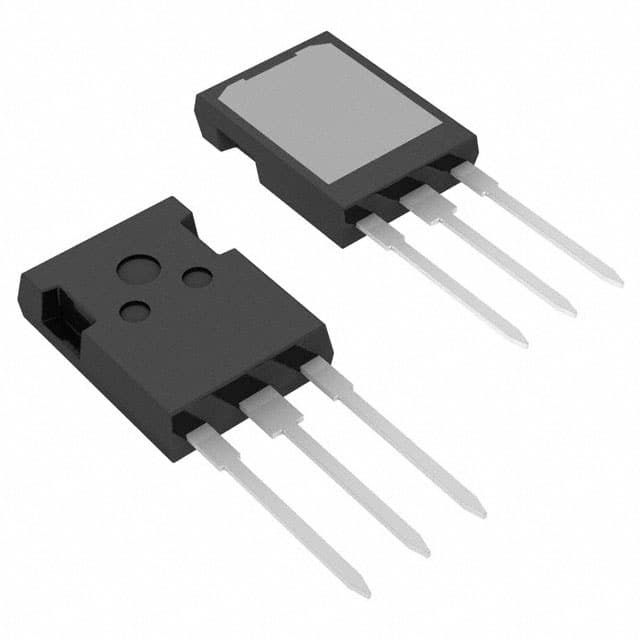

IXTX8N150L

SKU: 19178

Manufacturer: IXYS

Trans MOSFET N-CH 1.5KV 8A 3-Pin(3+Tab) PLUS 247

2160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	1500
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	8
Maximum Drain Source Resistance (mOhm)	3600@20V
Typical Gate Charge @ Vgs (nC)	250@15V
Typical Input Capacitance @ Vds (pF)	8000@25V
Maximum Power Dissipation (mW)	700000
Typical Fall Time (ns)	95
Typical Rise Time (ns)	18
Typical Turn-Off Delay Time (ns)	90
Typical Turn-On Delay Time (ns)	36
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	PLUS 247
Pin Count	3
Terminal Form	Through Hole
Package Height	21.34(Max)
Package Length	16.13(Max)
Package Width	5.21(Max)
PCB changed	3
